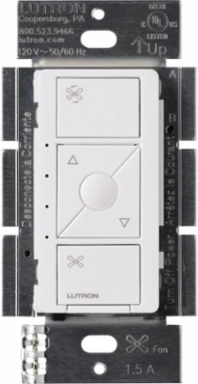

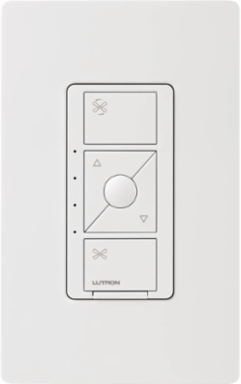

Lutron PD-FSQN-WH Caseta Smart Fan Speed Control, Wireless, Controls 1 Ceiling Fan up to 1.5A
- MPN: PD-FSQN-WH
- UPC: 784276260794
- PPN: LUT-PD-FSQN-WH
- UNSPSC: 39122206
CAD
$84.98
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Caseta Wireless Smart Fan Speed Control Switch gives you the ability to turn your fan on/off or choose between four speeds for increased comfort. This fan speed control is rated for 1 ceiling paddle fan up to 1.5A. Ceiling fans with integrated fan speed and/or light modules, proprietary remotes, or DC motors are not compatible with this device. Use with the wireless Fan Pico remote (PJ2-3BRL-GXX-F01, sold separately) for control from anywhere around your home. Existing hardwired 3-way switches will not work with this dimmer, for 3-way and multi-location applications Pico remotes must be used with this fan speed control. Replace the existing switch with a Fan Pico remote control and wall plate adapter to control the fan from every location (PICO-WBX-ADAPT sold separately). For increased versatility, add the Caseta Smart Hub (L-BDG2-WH, sold separately) and use with the free Lutron app to set up your favorite scenes and create schedules based on time of day. Integrate with other Smart Home brands, including Amazon Alexa, Google Home, Ring and more. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).
Features
- Experience the ultimate comfort and convenience with the NEW Caseta Wireless Smart Fan Speed Control. This fan control gives you the ability to turn your fan on/off or choose between four speeds for increased comfort. Eliminate your pull chains - use with the wireless Fan Pico remote (PJ2-3BRL-GXX-F01, sold separately) for control from anywhere around your home. For increased versatility, add the Smart Bridge (L-BDG2-WH, sold separately) and use with the FREE Lutron app to set up your favorite scenes and create schedules based on time of day. Integrate with other Smart Home brands, including Amazon Alexa, the Google Assistant, and more. Coordinating wallplate sold separately.
- Includes: One (1) Caseta Wireless Smart Fan Speed Control; Gloss finish
- Works with up to 1.5A single ceiling fan; not compatible with fans with proprietary remotes or DC motors
- Neutral Required; 120V
- Create a 3-way and add a 2nd switch anywhere by pairing with a mountable Pico remote (PJ2-3BRL-GWH-F01); Cannot be wired to existing 3-way switches
- Add a smart hub to connect with Alexa, Apple Home, Google Home, Ring, Serena Shades, SONOS, and more
- Lutron Clear Connect does not rely on wi-fi and is ultra-fast and ultra-reliable (avoid repeat service calls)
- Preset button allows you to turn your fan on to your preferred predetermined level
- Pair up to ten (10) Pico Remotes to one (1) Lutron Caseta Fan Speed control (limitations reflect when no Lutron Smart Hub installed)
- Control at the wall, with a Pico smart remote, with a phone, or voice assistant (Lutron Smart Hub, L-BDG2-WH, required for phone and voice assistant control)
- Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)
- Controls 150 W LED/CFL (screw-base) or 600 W incandescent/halogen loads
- Simple, intuitive design with on, off and raise/lower buttons
- Provides true dimming from each location with Pico wireless remotes
- Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents
Documentation & Downloads
Specifications
Key Specifications
| Aesthetic Finish | Glossy |
|---|---|
| Connection Type | Wire Leads |
| Family Color | White |
| Number of Poles | 1 |
| Operating Temperature, Minimum | 32 F |
| Type | Wireless in-wall dimmer, multi-location/single-pole |
| Wattage | 600 W |
| Frequency Rating | 434 MHz (RF) |
| Color | White |
| Enclosure | Plastic |
| Insulation | Plastic |
| Mounting | Wallbox |
| Size | 4.69 x 2.94;119 x 75 in;mm |
| Application | Lighting Control |
|---|---|
| Decorative Color | White |
| Frequency Rating, Minimum | 434 Hz |
| Operating Temperature, Maximum | 104 F |
| Switch Type | Push Button |
| Voltage Rating | 120 |
| Face Material | Metal;Plastic |
| Actuator | Push-button |
| Connection | Wire Leads |
| Finish | Gloss |
| Material | Plastic/Metal |
| Operating Temperature | 32 to 104 F |
