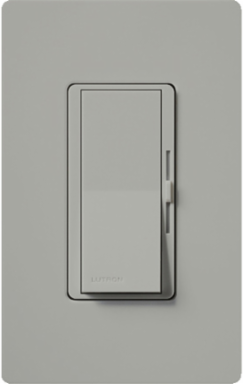

Lutron DVRP-253P-GR Diva Dimmer 250W LED 500W ELV Paddle Switch, Gray, Gloss Finish, Indoor Use
- MPN: DVRP-253P-GR
- UPC: 784276221719
- PPN: LUT-DVRP-253P-GR
- UNSPSC: 39122206
CAD
$133.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Diva Dimmer 250W LED 500W ELV Paddle Switch, Gray, Gloss Finish, Indoor Use
Features
- On/off paddle switch with a linear-slide dimmer for a standard designer wallplate opening.
- UL Listed to control: Dimmable LED with integrated driver; Dimmable compact fluorescent (CFL) with integrated ballast; Incandescent/Halogen; Electronic Low-Voltage (ELV) transformers
- Reverse-phase type control. Neutral wire connection is required in the wallbox.
- 100% factory tested
- Controls 120 V/250 W LED/CFL, and 500 W Inc and ELV loads
- Paddle turns on/off
- Slide up to brighten, down to dim.
Documentation & Downloads
Specifications
Key Specifications
- Aesthetic Finish
- Glossy
- Connection Type
- Wire Leads
- Environmental Conditions
- Indoor use only
- Number of Poles
- 1
- Operating Temperature, Minimum
- 32 F
- Type
- Dimmer, reverse-phase, 3-way/single-pole
- Face Material
- Metal;Plastic
- Wattage
- 250/500 W
- Color
- Gray
- Enclosure
- Plastic
- Insulation
- Plastic
- Mounting
- Wallbox
- Size
- 4.69 x 2.94;119 x 75 in;mm
ApplicationLighting Control
Decorative ColorGray
Frequency Rating, Maximum60 Hz
Operating Temperature, Maximum104 F
Switch TypePaddle Switch
Voltage Rating120
Family ColorGray
ActuatorPaddle switch
ConnectionWire Leads
FinishGloss
MaterialPlastic/Metal
Operating Temperature32 to 104 F
