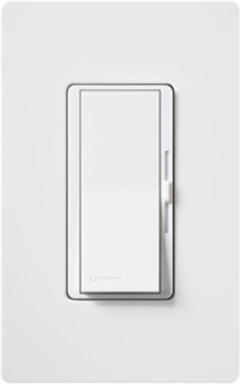

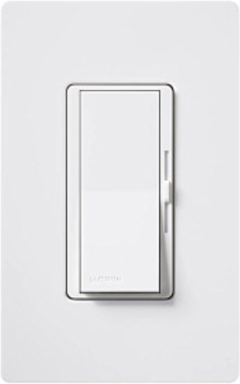

Lutron DVCL-253PH-WH-C Diva LED+ Dimmer Switch, 250W Dimmable LED/CFL, 600W Incandescent/Halogen
- MPN: DVCL-253PH-WH-C
- UPC: 784276092111
- PPN: LUT-DVCL-253PH-WH-C
- UNSPSC: 39122206
CAD
$73.83
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Diva 250-Watt LED+ dimmer switch works with dimmable LED screw-in bulbs up to 250-Watt and is also compatible with up to 600-Watt of standard incandescent and halogen bulbs, allowing you to control all 4 bulb types on the same circuit. It is designed to control a broad range of dimmable LED bulbs from a variety of brands including Philips, Cree, GE, EcoSmart and Lighting Science. With the same features as Lutron's Diva dimmer switch, the large paddle switch turns the light on/off and returns to your favorite setting. The discreet slider adjusts the light level to suit any activity. Coordinating Claro wall plate sold separately.
Features
- Controls 250 W dimmable LED/CFL (screw-base), 600 W incandescent/halogen or 350 W Hi-Lume 1 percent 2-wire LED driver loads. Paddle turns on/off. Slide up to brighten, down to dim. Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.
- Tested on 1,000s of bulbs and dozens of brands for flicker-free dimming.
- Provides over 250 lighting levels so you can create the perfect light for any activity
- Works with up to 250 Watts of dimmable LED/CFL bulbs or 600 Watts of Incandescent/Halogen bulbs
- Lutron patented technology to optimize the dim range of your bulb and prevent interference with other dimmers in the home
- Can be used in single-pole or 3-Way applications with a mechanical switch.

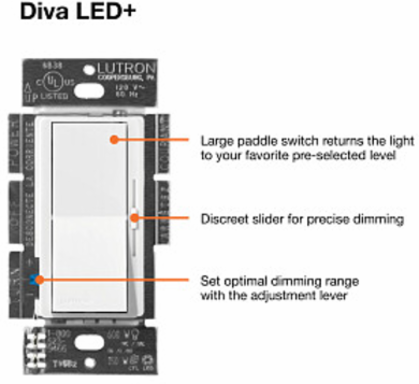

- Rocker switch turns lights on/off to favorite light level. Discreet slider dims and brightens the lights
- Installs in as little as 15 minutes in homes of all ages – NO NEUTRAL REQUIRED

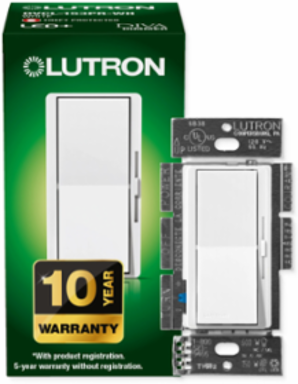

- Includes (1) Diva LED+ (formerly C.L) Dimmer Switch; coordinating wallplate sold separately
- Controls 250 W dimmable LED/CFL (screw-base), 600 W incandescent/halogen or 350 W Hi-Lume 1 percent 2-wire LED driver loads
- Paddle turns on/off
- Slide up to brighten, down to dim
- Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents
- Controls 250 W dimmable LED, 600 W incandescent/halogen or 350 W Hi-Lume 1 percent 2-wire LED driver loads. Paddle turns on/off. Slide up to brighten, down to dim. Provides reliable dimming of dimmable LEDs, as well as halogens and incandescents.
- Includes (1) Diva LED+ Dimmer Switch; coordinating wallplate sold separately
- 10 year warranty with product registration
Documentation & Downloads
Specifications
Key Specifications
| Aesthetic Finish | Glossy |
|---|---|
| Connection Type | Wire Leads |
| Environmental Conditions | Indoor use only |
| Frequency Rating, Maximum | 60 Hz |
| Operating Temperature, Maximum | 104 F |
| Switch Type | Paddle Switch |
| Voltage Rating | 120 |
| Face Material | Metal;Plastic |
| Color | White |
| Enclosure | Plastic |
| Insulation | Plastic |
| Mounting | Wallbox |

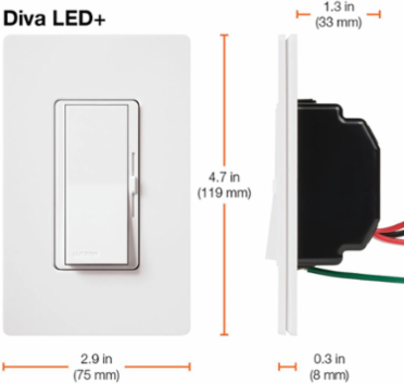

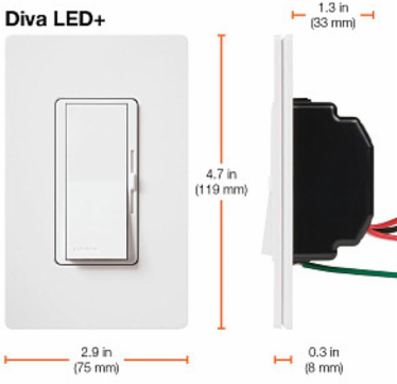

| Size | 4.69 x 2.94;119 x 75 in;mm |
| Application | Lighting Control |
|---|---|
| Decorative Color | White |
| Family Color | White |
| Number of Poles | 1 |
| Operating Temperature, Minimum | 32 F |
| Type | Dimmer, 3-way/single-pole, clamshell packaging |
| Wattage | 600 W |
| Actuator | Paddle switch |
| Connection | Wire Leads |
| Finish | Gloss |
| Material | Plastic/Metal |
| Operating Temperature | 32 to 104 F |
