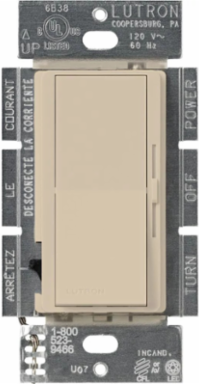

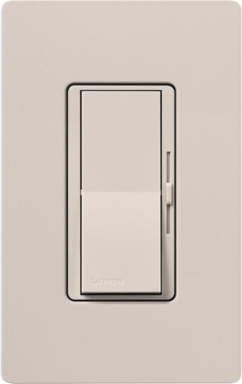

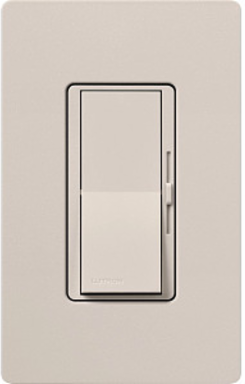

Lutron DVSCCL-253P-TP Diva 250W LED/CFL Dimmer Switch, Taupe, Paddle Switch, 3-Way/Singe-Pole
- MPN: DVSCCL-253P-TP
- UPC: 784276092364
- PPN: LUT-DVSCCL-253P-TP
- UNSPSC: 39122206
CAD
$84.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The Diva 250-Watt LED+ dimmer switch works with dimmable LED and CFL screw-in bulbs up to 250-Watt and is also compatible with up to 600-Watt of standard incandescent and halogen bulbs, allowing you to control all 4 bulb types on the same circuit. It is designed to control a broad range of dimmable LED and CFL bulbs from a variety of brands including Philips, Cree, GE, EcoSmart and Lighting Science. With the same features as Lutron's Diva dimmer switch, the large paddle switch turns the light on/off and returns to your favorite setting. The discreet slider adjusts the light level to suit any activity. Coordinating Claro wall plate sold separately.
Features
- Tested on 1,000s of bulbs and dozens of brands for flicker-free dimming.
- Provides over 250 lighting levels so you can create the perfect light for any activity
- Works with up to 250 Watts of dimmable LED/CFL bulbs or 600 Watts of Incandescent/Halogen bulbs
- Lutron patented technology to optimize the dim range of your bulb and prevent interference with other dimmers in the home
- Can be used in single-pole or 3-Way applications with a mechanical switch.

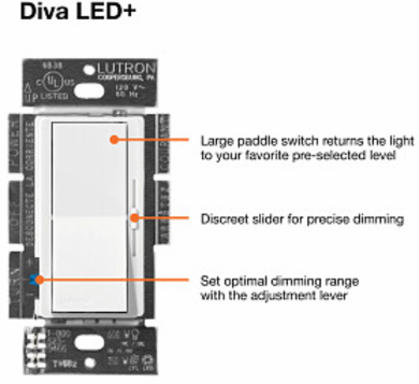

- Rocker switch turns lights on/off to favorite light level. Discreet slider dims and brightens the lights
- Installs in as little as 15 minutes in homes of all ages – NO NEUTRAL REQUIRED
- Includes (1) Diva LED+ (formerly C.L) Dimmer Switch; coordinating wallplate sold separately
- Controls 250 W dimmable LED/CFL (screw-base), 600 W incandescent/halogen or 350 W Hi-Lume 1 percent 2-wire LED driver loads
- Paddle turns on/off
- Slide up to brighten, down to dim
- Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.
Documentation & Downloads
Specifications
Key Specifications
- Aesthetic Finish
- Satin
- Connection Type
- Wire Leads
- Family Color
- Gray
- Number of Poles
- 1
- Operating Temperature, Minimum
- 32 F
- Type
- Dimmer, 3-way/single-pole
- Wattage
- 600 W
- Actuator
- Paddle switch
- Connection
- Wire Leads
- Finish
- Satin
- Material
- Plastic/Metal
- Operating Temperature
- 32 to 104 F
ApplicationLighting Control
Decorative ColorTaupe
Frequency Rating, Maximum60 Hz
Operating Temperature, Maximum104 F
Switch TypePaddle Switch
Voltage Rating120
Face MaterialMetal;Plastic
ColorTaupe
EnclosurePlastic
InsulationPlastic
MountingWallbox

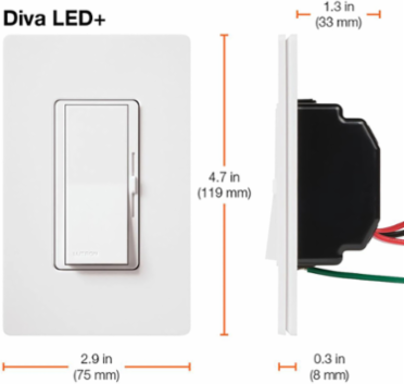

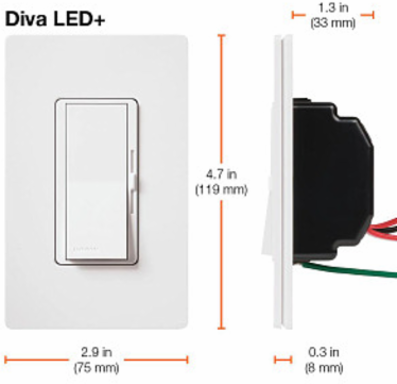

Size4.69 x 2.94;119 x 75 in;mm
