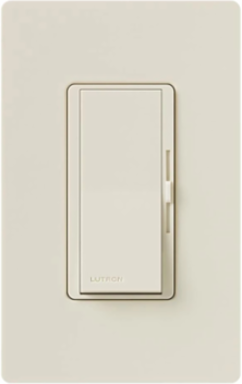

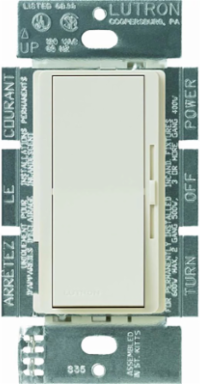

Lutron DVFSQ-F-LA-CSA Diva Fan Speed Switch, 1.5 A, Light Almond, 3-Speed Control
Lutron DVFSQ-F-LA-CSA Diva Fan Speed Switch, 1.5 A, Light Almond, 3-Speed Control
- MPN: DVFSQ-F-LA-CSA
- UPC: 027557367196
- PPN: LUT-DVFSQ-F-LA-CSA
- UNSPSC: 39122240
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$48.91/ EA
Description
The Lutron Diva Light and Fan Switch helps you achieve the ideal comfort level for any home. It features an intuitive rocker switch to turn your lights on/off and a discreet 3-speed slider to increase or decrease the fan speed. This Diva Light/Fan Switch works with all LED, CFL, Incandescent, and Halogen bulbs. For use in single-pole applications with single ceiling paddle fans only. Coordinating Claro wall plate sold separately. Available in 20+ colors to consistently match any Lutron device.
Features
- Includes (1) Diva Light/Fan switch; Gloss finish
- No Neutral Required; 120V
- Rated up to 1.5 Amp of indoor ceiling paddle fans and 120-Watt of LED/CFL's or 240-Watt of incandescent/halogen bulbs
- One (1) ceiling paddle fan only per fan control; not compatible with fans with proprietary remotes or DC motors
- Single-Pole only
- Wire-lead connections
- Large paddle switch turns fan on and off to preset level and slider adjusts fan speed
- Provides 3-quiet fan speeds for increased comfort
- Fits large designer-style openings; Available in in 20+ colors
- Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately)
- Controls 1.5 A fan
- Paddle turns on/off
- Slide up to increase speed, down to decrease speed
- 3 quiet fan speeds for increased comfort
- For use with only one ceiling paddle fan
- Does not include locator light
- Designed to prevent motor hum.
Specifications
Specifications
- Number Of Poles
- 1
- Color
- Light Almond
- Wattage
- 180 W
- Enclosure
- Plastic
- Contact Rating
- 1.5 A
- Size
- 4.69 x 2.94 in
- Actuator
- Paddle switch
- Finish
- Gloss
- Decorative Color
- Light Almond
MountingWallbox
Voltage Rating120 V
ApplicationFan Control
Contact ConfigurationN-O
TypeFan control, 3-way/single-pole
ConnectionWire leads
Amperage Rating1.5 A
Family ColorBeige
Aesthetic FinishGlossy
