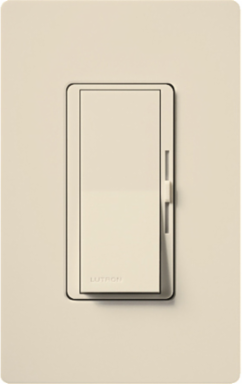

Lutron DVRP-253P-LA Diva Reverse-Phase Dimmer 250W LED 500W ELV Light Almond, 4.69 Inch x 2.94 Inch


Lutron DVRP-253P-LA Diva Reverse-Phase Dimmer 250W LED 500W ELV Light Almond, 4.69 Inch x 2.94 Inch
- MPN: DVRP-253P-LA
- UPC: 784276221689
- PPN: LUT-DVRP-253P-LA
- UNSPSC: 39122206
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$133.80/ EA
Features
- On/off paddle switch with a linear-slide dimmer for a standard designer wallplate opening.
- UL Listed to control: Dimmable LED with integrated driver; Dimmable compact fluorescent (CFL) with integrated ballast; Incandescent/Halogen; Electronic Low-Voltage (ELV) transformers
- Reverse-phase type control. Neutral wire connection is required in the wallbox.
- 100% factory tested
- Controls 120 V/250 W LED/CFL, and 500 W Inc and ELV loads
- Paddle turns on/off
- Slide up to brighten, down to dim.
Specifications
Specifications
- Operating Temperature, Maximum
- 104 F
- Voltage Rating
- 120
- Operating Temperature, Minimum
- 32 F
- Application
- Lighting Control
- Frequency Rating, Maximum
- 60 Hz
- Switch Type
- Paddle Switch
- Decorative Color
- Light Almond
- Wattage
- 250/500 W
- Finish
- Gloss
- Insulation
- Plastic
- Operating Temperature
- 32 to 104 F
- Mounting
- Wallbox
- Actuator
- Paddle switch
TypeDimmer, reverse-phase, 3-way/single-pole
Environmental ConditionsIndoor use only
Aesthetic FinishGlossy
Family ColorBeige
Number of Poles1
Connection TypeWire Leads
Face MaterialMetal;Plastic
EnclosurePlastic
Size4.69 x 2.94;119 x 75 in;mm
ColorLight Almond
MaterialPlastic/Metal
ConnectionWire Leads
