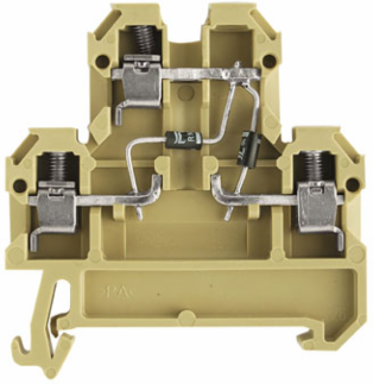

Weidmuller 0396860000 DK 4/35 2D GET.SCH. A2
- MPN: 0396860000
- PPN: WDM-0396860000
CAD
$14.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
SAK Series, Component terminal, Rated cross-section: 4 mm², Screw connection
Documentation & Downloads
Specifications
Approvals
- Approvals
- CE, EAC
ROHSConform
Dimensions And Weights
- Width
- 6 mm
- Height
- 50 mm
- Depth
- 52.5 mm
- Net weight
- 10.72 g
Width (inches)0.236 inch
Height (inches)1.969 inch
Depth (inches)2.067 inch
Dimensions
- TS 35 offset
- 27 mm
Additional Technical Data
- Explosion-tested version
- No
- Open sides
- right
Number of similar terminals1
Type of mountingSnap-on
Material Data
- Material
- PA 66
- UL 94 flammability rating
- V-2
Colourbeige / yellow
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000903
- eClass 9.0
- 27-14-11-27
- eClass 10.0
- 27-14-11-27
ETIM 7.0EC000903
eClass 9.127-14-11-47
UNSPSC30-21-18-11
System Specifications
- Version
- Screw connection, with diode
- Number of potentials
- 1
- Number of clamping points per level
- 2
- Levels cross-connected internally
- Yes
- Rail
- TS 35
- PE function
- No
End cover plate requiredYes
Number of levels2
Number of potentials per tier1
PE connectionNo
N-functionNo
PEN functionNo
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 100 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
Rating Data
- Rated cross-section
- 4 mm²
- Rated current
- 10 A
- Volume resistance according to IEC 60947-7-x
- 1 mΩ
- Pollution severity
- 3
Rated voltage380 V
Current at maximum wires10 A
Power loss in accordance with IEC 60947-7-x1.02 W
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping range, min.
- 0.33 mm²
- Connection cross-section, stranded, max.
- 4 mm²
- Connection direction
- on side
- Number of connections
- 4
- Tightening torque, max.
- 0.8 Nm
- Torque level with DMS electric screwdriver
- 2
- Wire connection cross section AWG, max.
- AWG 12
- Wire connection cross section, finely stranded, max.
- 4 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 4 mm²
Clamping range, max.4 mm²
Clamping screwM 3
Connection cross-section, stranded, min.0.5 mm²
Gauge to IEC 60947-1A3
Stripping length9 mm
Tightening torque, min.0.5 Nm
Type of connectionScrew connection
Wire connection cross section AWG, min.AWG 22
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.4 mm²
Wire connection cross-section, finely stranded, min.0.5 mm²
Wire connection cross-section, solid core, min.0.5 mm²
