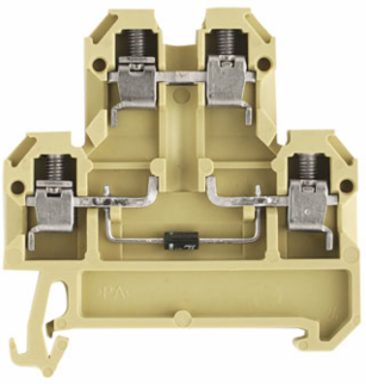

Weidmuller 2026840000 DK 4/35 D
- MPN: 2026840000
- PPN: WDM-2026840000
CAD
$6.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SAK Series, Component terminal, Rated cross-section: 4 mm², Screw connection
Documentation & Downloads
Specifications
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Width
- 6 mm
- Height
- 50 mm
- Depth
- 52.5 mm
- Net weight
- 11.6 g
Width (inches)0.236 inch
Height (inches)1.969 inch
Depth (inches)2.067 inch
Additional Technical Data
- Type of mounting
- Snap-on
Material Data
- Material
- PA 66
- UL 94 flammability rating
- V-2
Colourbeige / yellow
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000903
- eClass 9.0
- 27-14-11-27
- eClass 10.0
- 27-14-11-27
ETIM 7.0EC000903
eClass 9.127-14-11-47
System Specifications
- Version
- Screw connection, with diode
- Number of levels
- 2
- Number of potentials per tier
- 1
- PE connection
- No
- N-function
- No
- PEN function
- No
Number of potentials2
Number of clamping points per level2
Levels cross-connected internallyNo
RailTS 35
PE functionNo
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 100 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
Rating Data
- Rated cross-section
- 4 mm²
- Power loss in accordance with IEC 60947-7-x
- 1.02 W
Volume resistance according to IEC 60947-7-x1 mΩ
Conductors For Clamping (Rated Connection)
- Number of connections
- 4
Type of connectionScrew connection
