Weidmuller 1714970000 ZDK 2.5/D/0
- MPN: 1714970000
- PPN: WDM-1714970000
CAD
$5.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

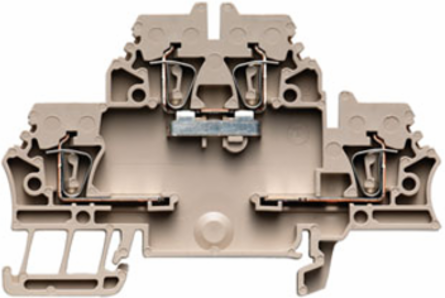

Z-series, Component terminal, Double-tier terminal, Rated cross-section: 2.5 mm², Tension-clamp connection
Documentation & Downloads
Specifications
Approvals
| Approvals | CE, EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 5.1 mm |
|---|---|
| Height | 79.1 mm |
| Depth | 53 mm |
| Depth including DIN rail | 54 mm |
| Width (inches) | 0.201 inch |
|---|---|
| Height (inches) | 3.114 inch |
| Depth (inches) | 2.087 inch |
| Net weight | 10.52 g |
Additional Technical Data
| Type of mounting | Snap-on |
|---|
Material Data
| Material | Wemid |
|---|---|
| UL 94 flammability rating | V-0 |
| Colour | dark beige |
|---|
Safety Note
| Safety notice | Safety Information |
|---|
Classifications
| ETIM 6.0 | EC000903 |
|---|---|
| eClass 9.0 | 27-14-11-27 |
| eClass 10.0 | 27-14-11-27 |
| ETIM 7.0 | EC000903 |
|---|---|
| eClass 9.1 | 27-14-11-47 |
System Specifications
| Version | Tension-clamp connection, for plug-in cross-connector, One end without connector |
|---|---|
| Number of levels | 2 |
| Number of potentials per tier | 1 |
| PE connection | No |
| N-function | No |
| PEN function | No |
| Number of potentials | 2 |
|---|---|
| Number of clamping points per level | 2 |
| Levels cross-connected internally | Yes |
| Rail | TS 35 |
| PE function | No |
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 120 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -50 °C |
Rating Data
| Rated cross-section | 2.5 mm² |
|---|---|
| Power loss in accordance with IEC 60947-7-x | 0.77 W |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
|---|
Conductors For Clamping (Rated Connection)
| Number of connections | 4 |
|---|---|
| Type of connection | Tension-clamp connection |
| Stripping length | 10 mm |
|---|
