Weidmuller 8218440000 DK OR 35 24VDC
- MPN: 8218440000
- PPN: WDM-8218440000
CAD
$218.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

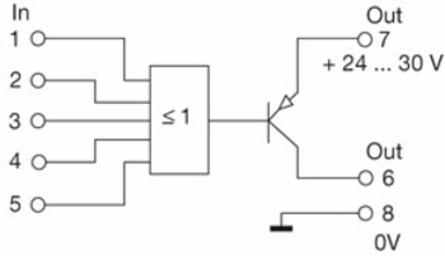

Function component, OR Gate
Documentation & Downloads
Specifications
General Data
| Current consumption | < 5 mA |
|---|---|
| Humidity | 40 °C / 93 % rel. humidity, no condensation |
| Open sides | right |
| Type of connection | Screw connection |
| Galvanic isolation | Without isolation |
|---|---|
| Input/Output | Logic module |
| Rail | TS 35 |
| Voltage supply | 24...30 V DC |
Approvals
| Approvals | CE |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Length | 65 mm |
|---|---|
| Width | 12 mm |
| Height | 57 mm |
| Net weight | 29.2 g |
| Length (inches) | 2.559 inch |
|---|---|
| Width (inches) | 0.472 inch |
| Height (inches) | 2.244 inch |
Connection Data
| Type of connection | Screw connection |
|---|---|
| Clamping range, min. | 0.5 mm² |
| Clamping range, rated connection | 4 mm² |
|---|---|
| Clamping range, max. | 4 mm² |
Input
| Number of inputs | 5 |
|---|---|
| Rated input level | 24 V DC= High, 0 V = Low |
| Input current | Approx. 1.5 mA per input (24 V) |
| Pulse duration | ≥ 50 µs |
|---|---|
| Rated voltage (text) | Max. 30 V |
Classifications
| ETIM 6.0 | EC001417 |
|---|---|
| eClass 9.0 | 27-24-22-16 |
| eClass 10.0 | 27-24-22-16 |
| ETIM 7.0 | EC001417 |
|---|---|
| eClass 9.1 | 27-21-92-90 |
| UNSPSC | 30-21-18-01 |
Output
| Number of outputs | 1 |
|---|---|
| Output level | PNP, Ub-1.8 V |
| load impedance current | ≤ 600 Ω |
| Output current | max. 20 mA |
|---|---|
| Switching thresholds | High <15 V, low < 9 V |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Insulation Coordination
| Insulation voltage input or output/rail | 4 kVeff |
|---|
| Standards | DIN EN 50178 |
|---|
Temperatures
| Humidity | 40 °C / 93 % rel. humidity, no condensation |
|---|---|
| Operating temperature, min. | 0 °C |
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...60 °C |
| Operating temperature, max. | 50 °C |
|---|---|
| Storage temperature, max. | 60 °C |
| Operating temperature | 0 °C...50 °C |
