Weidmuller 0687460000 DKT 4/35
- MPN: 0687460000
- PPN: WDM-0687460000
CAD
$40.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

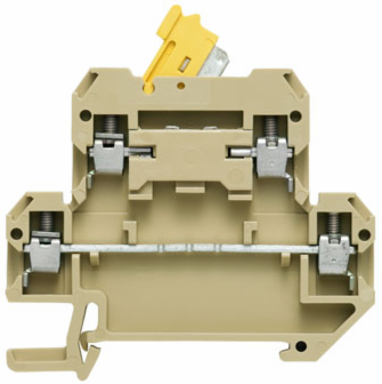

W terminal with special connection, Disconnect and modular disconnect terminal, Rated cross-section: 4 mm², Screw connection, PA 66, Direct mounting
Documentation & Downloads
Specifications
Approvals
| Approvals | CE, CSA, EAC, MARITREG, UR |
|---|---|
| UL File Number Search | E60693 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 6 mm |
|---|---|
| Height | 65 mm |
| Height of lowest version | 56.5 mm |
| Depth (inches) | 2.224 inch |
| Width (inches) | 0.236 inch |
|---|---|
| Height (inches) | 2.559 inch |
| Depth | 56.5 mm |
| Net weight | 16.13 g |
Csa Rating Data
| Certificate No. (CSA) | 12400-281 |
|---|---|
| Voltage size C (CSA) | 300 V |
| Wire cross section min. (CSA) | 26 AWG |
| Current size C (CSA) | 25 A |
|---|---|
| Wire cross section max. (CSA) | 12 AWG |
Additional Technical Data
| Explosion-tested version | No |
|---|---|
| Number of similar terminals | 1 |
| Type of mounting | Snap-on |
| Installation advice | Direct mounting |
|---|---|
| Open sides | right |
Material Data
| Material | PA 66 |
|---|---|
| Colour | beige |
| Insulating material | PA 66 |
|---|---|
| UL 94 flammability rating | V-2 |
Safety Note
| Safety notice | Safety Information |
|---|
Classifications
| ETIM 6.0 | EC000902 |
|---|---|
| eClass 9.0 | 27-14-11-26 |
| eClass 10.0 | 27-14-11-26 |
| ETIM 7.0 | EC000902 |
|---|---|
| eClass 9.1 | 27-14-11-26 |
| UNSPSC | 30-21-18-11 |
System Specifications
| End cover plate required | Yes |
|---|---|
| Number of clamping points per level | 2 |
| Rail | TS 35 |
| Number of levels | 2 |
|---|---|
| Levels cross-connected internally | No |
Disconnect Terminals
| Cross-disconnect | without |
|---|---|
| Slitting | Pivoting |
| Integral test socket | No |
|---|
Temperatures
| Operating temperature range, max. | 100 °C |
|---|---|
| Storage temperature, max. | 40 °C |
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 100 °C |
| Operating temperature range, min. | -50 °C |
|---|---|
| Storage temperature, min. | 10 °C |
| Continuous operating temp., min. | -50 °C |
Conductors For Clamping (Additional Connection)
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max. | 2.5 mm² |
|---|
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, min. | 0.5 mm² |
|---|
Rating Data
| Rated cross-section | 4 mm² |
|---|---|
| Rated current | 10 A |
| Standards | IEC 60947-7-1 |
| Rated impulse withstand voltage | 6 kV |
| Rated voltage | 400 V |
|---|---|
| Current at maximum wires | 10 A |
| Power loss in accordance with IEC 60947-7-x | 1.02 W |
| Pollution severity | 3 |
Conductors For Clamping (Rated Connection)
| Blade size | 0.6 x 3.5 mm |
|---|---|
| Clamping range, min. | 0.13 mm² |
| Connection cross-section, stranded, max. | 4 mm² |
| Connection direction | on side |
| Number of connections | 4 |
| Tightening torque, max. | 1 Nm |
| Torque level with DMS electric screwdriver | 2 |
| Twin wire-end ferrules, min. | 0.5 mm² |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section, finely stranded, max. | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 4 mm² |
| Clamping range, max. | 4 mm² |
|---|---|
| Clamping screw | M 3 |
| Connection cross-section, stranded, min. | 1.5 mm² |
| Gauge to IEC 60947-1 | A3 |
| Stripping length | 9 mm |
| Tightening torque, min. | 0.5 Nm |
| Twin wire-end ferrules, max. | 1.5 mm² |
| Type of connection | Screw connection |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded, min. | 0.2 mm² |
| Wire connection cross-section, solid core, min. | 0.2 mm² |
Ul Rating Data
| Certificate No. (UR) | E60693 |
|---|---|
| Conductor size Factory wiring min. (UR) | 26 AWG |
| Conductor size Field wiring min. (UR) | 22 AWG |
| Voltage size C (UR) | 300 V |
| Conductor size Factory wiring max. (UR) | 12 AWG |
|---|---|
| Conductor size Field wiring max. (UR) | 12 AWG |
| Current size C (UR) | 10 A |
