Weidmuller 0412160000 SAKR
- MPN: 0412160000
- PPN: WDM-0412160000
CAD
$8.21
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

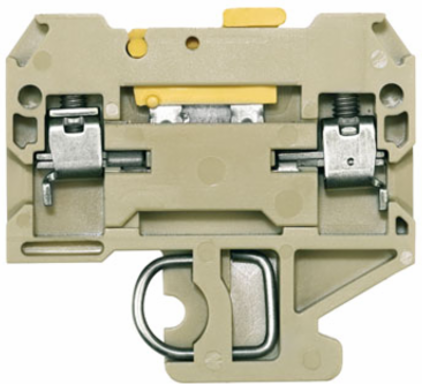

SAK Series, Test-disconnect terminal, Rated cross-section: 4 mm², Screw connection, beige, Direct mounting
Documentation & Downloads
Specifications
Approvals
- Approvals
- CE, CSA, EAC, IECEXSIR, MARITREG, SIRAATEX, UR
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Width
- 6.5 mm
- Height
- 42 mm
- Depth
- 40.5 mm
- Net weight
- 9.052 g
Width (inches)0.256 inch
Height (inches)1.654 inch
Depth (inches)1.594 inch
Csa Rating Data
- Certificate No. (CSA)
- 12400-132
- Voltage size C (CSA)
- 300 V
- Wire cross section min. (CSA)
- 24 AWG
Current size C (CSA)10 A
Wire cross section max. (CSA)12 AWG
Additional Technical Data
- Explosion-tested version
- Yes
- Number of similar terminals
- 1
- Type of mounting
- Snap-on
Installation adviceDirect mounting
Open sidesright
Material Data
- Material
- PA 66
- UL 94 flammability rating
- V-2
Colourbeige / yellow
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000902
- eClass 9.0
- 27-14-11-26
- eClass 10.0
- 27-14-11-26
ETIM 7.0EC000902
eClass 9.127-14-11-26
UNSPSC30-21-18-11
System Specifications
- Version
- Screw connection, Spacer, One end without connector
- Number of potentials
- 1
- Number of clamping points per level
- 2
- Levels cross-connected internally
- No
- Rail
- TS 32
- PE function
- No
End cover plate requiredYes
Number of levels1
Number of potentials per tier1
PE connectionNo
N-functionNo
PEN functionNo
Disconnect Terminals
- Cross-disconnect
- without
- Slitting
- Pivoting
Integral test socketNo
Temperatures
- Operating temperature range
- For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
- Storage temperature, min.
- 10 °C
- Continuous operating temp., min.
- -50 °C
Storage temperature, max.40 °C
Storage temperature10 °C...40 °C
Continuous operating temp., max.100 °C
Conductors For Clamping (Additional Connection)
- Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.
- 2.5 mm²
Rating Data
- Rated cross-section
- 4 mm²
- Rated current
- 10 A
- Standards
- IEC 60947-7-1
- Power loss in accordance with IEC 60947-7-x
- 1.02 W
- Pollution severity
- 3
Rated voltage400 V
Current at maximum wires10 A
Volume resistance according to IEC 60947-7-x1 mΩ
Rated impulse withstand voltage6 kV
Rating Data Iecex/Atex
- Certificate No. (ATEX)
- SIRA03ATEX4288U
- Max. voltage (ATEX)
- 400 V
- Wire cross section max. (ATEX)
- 4 mm²
- Current (IECEX)
- 10 A
- Operating temperature range
- For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
- Ex 2014/34/EU label
- II 2 G D
Certificate No. (IECEX)IECEXSIR05.0033U
Current (ATEX)10 A
Max. voltage (IECEX)400 V
Wire cross section max. (IECEX)4 mm²
Marking EN 60079-7Ex ec II C Gc
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping range, min.
- 0.13 mm²
- Connection cross-section, stranded, max.
- 4 mm²
- Connection direction
- on side
- Number of connections
- 2
- Tightening torque, max.
- 1 Nm
- Torque level with DMS electric screwdriver
- 2
- Twin wire-end ferrules, min.
- 0.5 mm²
- Wire connection cross section AWG, max.
- AWG 12
- Wire connection cross section, finely stranded, max.
- 4 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 4 mm²
Clamping range, max.4 mm²
Clamping screwM 3
Connection cross-section, stranded, min.1.5 mm²
Gauge to IEC 60947-1A3
Stripping length8 mm
Tightening torque, min.0.5 Nm
Twin wire-end ferrules, max.1.5 mm²
Type of connectionScrew connection
Wire connection cross section AWG, min.AWG 26
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.4 mm²
Wire connection cross-section, finely stranded, min.0.5 mm²
Wire connection cross-section, solid core, min.0.5 mm²
Ul Rating Data
- Certificate No. (UR)
- E60693
- Conductor size Factory wiring min. (UR)
- 26 AWG
- Conductor size Field wiring min. (UR)
- 22 AWG
- Voltage size D (UR)
- 300 V
Conductor size Factory wiring max. (UR)12 AWG
Conductor size Field wiring max. (UR)12 AWG
Current size D (UR)10 A
