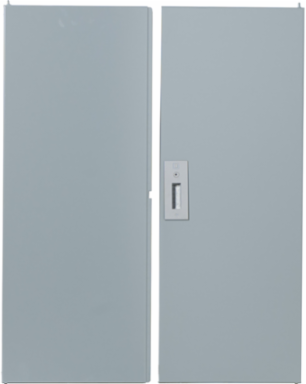

Square D HCW68D I-Line Panelboard Door Kit, 600V AC/DC, 17.170 Inch Width, 43.6 Inch Height
- MPN: HCW68D
- UPC: 785901145561
- PPN: SCH-HCW68D
- UNSPSC: 39121112
CAD
$373.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This door kit is designed for Schneider Electric's I-Line panelboards, offering reliable security and compatibility with systems operating at voltages up to 600V AC/DC. With a width of 17.170 inches and a height of 43.6 inches, it effortlessly integrates with your electrical enclosures, ensuring that vital components are protected and easily accessible. Constructed with attention to detail, this door kit enhances the functionality of your electrical installations while maintaining compliance with industry standards.
Features
- I-Line power distribution panelboard is the most versatile on the market
- I-Line panelboards are capable of feeding large motor loads and are utilized in almost every market segment
- Wherever electricity is distributed or controlled, you’ll find I-Line Power Panelboards
- Individual Breaker display and PowerLogic or ION module available
- Comes factory assembled or ready-to-install
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
Complementary Attributes
| Ue Rated Operational Voltage | 600 V AC/DC 50/60 Hz |
|---|
Important Information Attributes
| Local Data Status | Publishable |
|---|---|
| Return Indicator | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1847 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Product Destination | panelboard HCP |
| Quantity Per Set | 4 pieces |
| Returnability | Yes |
| Height Nominal | 43.6 in |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Local Publishable Date | 2026-09-04 |
|---|---|
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | door kit |
| Range Of Product | I-Line |
| Sustainable Packaging | No |
| Width Nominal | 17.170 in |
| Customs Code | 8538908160 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Environmental Disclosure | ENVPEP1407017EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Take Back | No |
|---|---|
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1407017EN |
General Attributes
| Product Or Component Type | door kit |
|---|
| Range Of Product | I-Line |
|---|
Contractual Warranty Attributes
| Warranty | 18 months |
|---|
