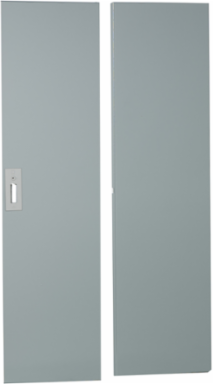

Square D HCW86D I-Line Panelboard Door Kit, 61.6 Inch Height, 17.170 Inch Width, 4 Pieces
- MPN: HCW86D
- UPC: 785901326335
- PPN: SCH-HCW86D
CAD
$434.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Panelboard interiors and special fronts can be furnished to fit existing enclosures. Existing enclosure depth on flush installations must be measured from inside surface of enclosure to outer wall or plaster surface. Existing enclosure the same depth as or deeper than our standard. Elevating brackets to be supplied by customer for existing enclosures deeper than our standard.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
Important Information Attributes
| Local Data Status | Publishable |
|---|---|
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1847 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Product Destination | panelboard HCP |
| Quantity Per Set | 4 pieces |
| Returnability | Yes |
| Pep Code | ENVPEP1407017EN |
| Width Nominal | 17.170 in |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908160 |
| Local Publishable Date | 2025-11-13 |
|---|---|
| Stocking Flag | Y |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | door kit |
| Range Of Product | I-Line |
| Sustainable Packaging | No |
| Height Nominal | 61.6 in |
| [Ue] Rated Operational Voltage | 600 V AC/DC 50/60 Hz |
| Package Weight(Lbs) | 28.576 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Environmental Disclosure | ENVPEP1407017EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Take Back | No |
|---|---|
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1407017EN |
General Attributes
| Product Or Component Type | door kit |
|---|
| Range Of Product | I-Line |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
