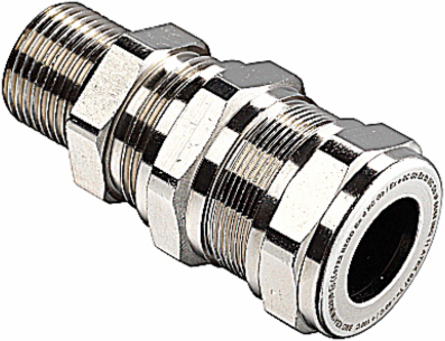

Kopex-ex EXN04ALC1 Double Compression Gland

MPN: EXN04ALC1
UPC: 078621019428
PPN: T-B-EXN04ALC1

$56.25

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Double Compression Cable Gland, 1/2 Inch NPT Thread, Flameproof Ex d and Increased Safety Ex e, Suitable for use with SWA, SWB, and AWA Conduit, IP66 Rating, Inner Cable Range 12 to 14.5mm, Outer Cable Range 16 to 20mm, Nickel Plated Brass

Specifications

European Specifications (ETIM)

ETIM	EC000441 Cable screw gland
Nominal thread size inch/gas pipe thread	1/2 inch
Hexagon angular dimension	35mm
Material	Metal
Surface protection	Nickel-plated
Glass-fibre reinforced	N
Shock resistant	N
Bend radius protection/trumpet flare	N
Model	Straight
Strain relief	N
Explosion-tested version	Y
For Ex-Zone dust	21, 22

Thread type	NPT
Thread length	21mm
Suitable for cable diameter	12.0-20.0mm
Material quality	Brass
Halogen free	N
Degree of protection (IP)	IP68
Colour	Natural colour
With locknut	N
Flat cable coupling	N
Operating temperature	-40-+100°C
For Ex-zone gas	1, 2
EMC-version	N

North American Specifications (UNSPSC)

UNSPSC	39121431 Cable gland connector
Brand Name	Kopex
Application	For Use with SWA (Steel Wired Armoured), AWA (Aluminum Wired Armour), and SWB (Steel Wired Braid) Conduit to Provide Secure Cable Connections Through Knockouts and Threaded Entries
Size	1/2 Inch NPT
Material	Brass
Color	Metallic
Temperature Rating	-40 to 100 Degrees C

IGCC	4601 Cable gland connector
Type	Double Compression Gland
Standard	UL Listed, Approved to EN60079-0, 60079-1, 60079-7, 60079-31
Conductor Range	Inner 12 to 14.5mm, Outer 16 to 20mm
Finish	Nickel Plated
Insulation	IP66 Rating
Environmental Conditions	Flameproof Ex d and Increased Safety Ex e, Suitable for Zones 1, 2, 21, 22
