Crouse-Hinds

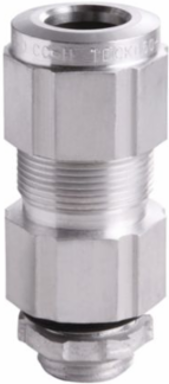

Crouse-Hinds TECK300 20 Eaton Crouse-Hinds series TECK cable gland, TECK armoured cable, Armoured gland, Aluminum, Outer sheath min/max: 3.00-3.27", General purpose, 3" NPT, Armor range min/max: 2.87-3.19"

Eaton Crouse-Hinds series TECK cable gland, TECK armoured cable, Armoured gland, Aluminum, Outer sheath min/max: 3.00-3.27", General purpose, 3" NPT, Armor range min/max: 2.87-3.19"
  • MPN: TECK300 20
  • UPC: 782274116853
  • PPN: CRH-TECK300 20

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$299.45/ EA

Description

Eaton Crouse-Hinds series TECK cable gland, TECK armoured cable, Armoured gland, Aluminum, Outer sheath min/max: 3.00-3.27", General purpose, 3" NPT, Armor range min/max: 2.87-3.19"

Specifications

Specifications

Protection type
General purpose
Gland type
Armoured
Thread Size
3"
Armor (min/max)
2.87-3.19"
Cable typeTECK armored
MaterialAluminum
Thread typeNPT
Outer sheath (min/max)3.00-3.27"

General

UPC
782274116853
Product Height
5.25 in
Product Weight
2.75 lb
Product Length/Depth6.4 in
Product Width5.25 in

Certifications And Compliances

Area classification
Hazardous/Classified Locations
NEC hazardous rating
Class I, Division 1
Standards typeNEC/CEC
NEMA Rating4
