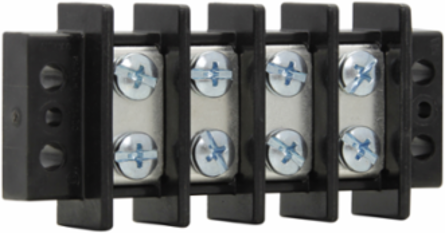

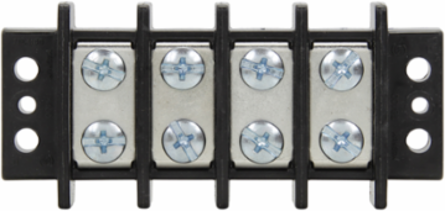

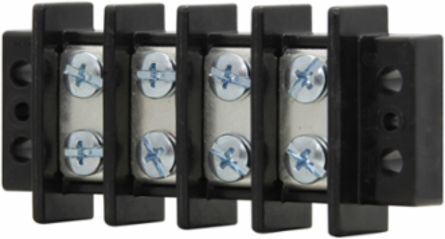

Bussmann TB400-08 Double Row Terminal Block, 8-Pole, 600V, 75A, 3.89 Inch Length, 1.81 Inch Width
- MPN: TB400-08
- UPC: 051712810920
- PPN: BUS-TB400-08
CAD
$50.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Double Row Terminal Block, 8-Pole, 600V, 75A, 3.89 Inch Length, 1.81 Inch Width
Documentation & Downloads
Specifications
Key Specifications
| Height | .76 IN |
|---|---|
| Width | 1.81 IN |
| Special Features | Breakdown voltage 7500V |
| Amperage Rating | 75A |
| Connection | #10-32 TPI Screw |
| Mounting | Screw |
| Torque Rating | 20 lb-in |
| Number Of Poles | Eight-pole |
| Length | 3.89 IN |
|---|---|
| Weight | .239 LB |
| Type | Double row, barrier |
| Voltage Rating | 600V |
| Material | Tin-plated brass terminal, Zinc-plated Steel philslot screw |
| Operating Temperature | -40° to 130°C |
| Color | Black |
