Greenlee DDVIP-138/K01 P-138 Dual Display Voltage Indicator & Phasing Set 100V-138kV, 14 Inch Length
- MPN: DDVIP-138/K01
- UPC: 783310042983
- PPN: GRN-DDVIP-138/K01
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
P-138 Dual Display Voltage Indicator & Phasing Set 100V-138kV, 14 Inch Length
Features
- Measures voltage from 100V to 138kV line‑to‑line.
- Can be used individually as voltage indicators or together for phasing operations up to 100 ft (30 m) apart.
- Two LED displays are automatically synchronized during phasing operations.
- Clear in-phase and out-of-phase indication.
- Versatile for overhead and underground applications.
- Capacitive Test Point and Peak Hold modes
Documentation & Downloads
Specifications
Key Specifications
| Sub Brand | HDE |
|---|---|
| Model | DDVIP-138 |
| Accuracy | Within 15%, dependent on geometry |
| Operating Temperature | -20°F to +120°F (-29°C to +49°C) |
| Frequency Rating | AC 50/60Hz |

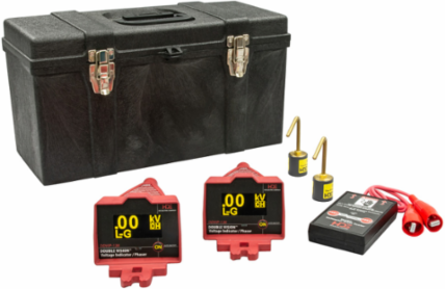

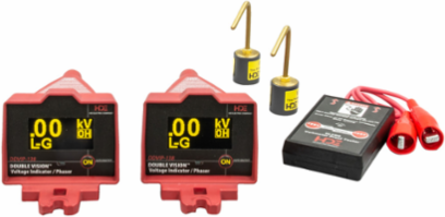

| Included | DDVIP-138, (2) 025-OLPS-5 Overhead Brass Hook Probes (2), PT-DDVIP Proof Tester, CS-DDVM Case |
| Type | Voltage Indicator & Phasing set |
|---|---|
| Voltage Rating | 100V - 138kV line-to-line, 100V - 80kV line-to-ground |
| Display | Two LED displays with 0.7" numeral height. Displays 3 digits |
| Dimensions | 14" L x 4.6" W x 4.1" H (36 cm x 12 cm x 10 cm) |
| Phase Indication | In-Phase/Out-of-Phase |
