Greenlee DDVIP-138/K02 P-138 Dual Display Wireless Voltage Indicating Phaser 100V-138kV, 14 Inch Length
- MPN: DDVIP-138/K02
- UPC: 783310042990
- PPN: GRN-DDVIP-138/K02
- UNSPSC: 41113637
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

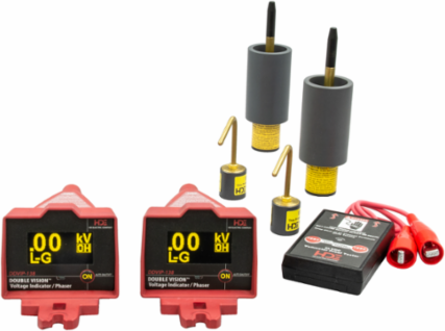

P-138 Dual Display Wireless Voltage Indicating Phaser 100V-138kV, 14 Inch Length
Features
- Measures voltage from 100V to 138kV line‑to‑line.
- Can be used individually as voltage indicatorsor together for phasing operations up to 100 ft (30 m) apart.
- Two LED displays are automatically synchronizedduring phasing operations.
- Clear in-phase and out-of-phase indication.
- Versatile for overhead and underground applications.
- Capacitive Test Point and Peak Hold modes
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Type
- Voltage Indicator & Phasing set
- Voltage Rating
- 100V - 138kV line-to-line, 100V - 80kV line-to-ground
- Display
- Two LED displays with 0.7" numeral height. Displays 3 digits
- Dimensions
- 14" L x 4.6" W x 4.1" H (36 cm x 12 cm x 10 cm)
- Phase Indication
- In-Phase/Out-of-Phase
Sub BrandHDE
ModelDDVIP-138
AccuracyWithin 15%, dependent on geometry
Operating Temperature-20°F to +120°F (-29°C to +49°C)
Frequency RatingAC 50/60Hz

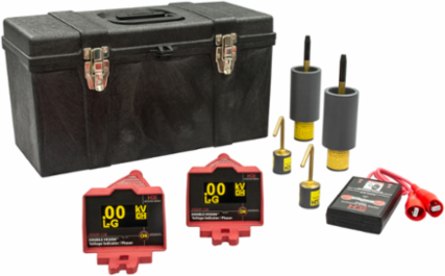

IncludedDDVIP-138, (2) 025-OLPS-5 Overhead Brass Hook Probes (2), ASP-15/25 15kV/25kV UG Bushing Probe (2), PT-DDVIP Proof Tester, CS-DDVM Case
Regulations
- REACH Compliant
- Yes
