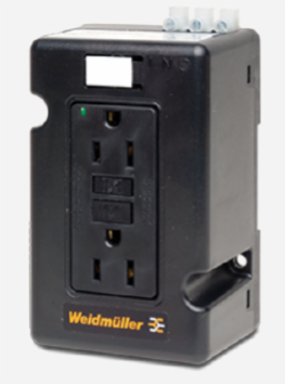

Weidmuller 6720005422 DRAC GF 15
- MPN: 6720005422
- PPN: WDM-6720005422
CAD
$77.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
DRAC GF 15
Documentation & Downloads
Specifications
Additional
- Voltage
- 120 VAC nominal, 125 VAC max.
- Operating Frequency
- 50 - 60 Hz
- Trip Level
- 5 mA ±1 mA
- Operating Temperature
- -25°C to 60°C
- Length
- 123.6 mm / 4.9 in.
- Height
- 61.5 mm / 2.4 in.
- Termination Wire Size
- 20 - 10 AWG (solid or stranded, copper only)
- Terminations
- Screw terminals, slotted
- Material Enclosure Base
- Polyamide 6/6 30% GF, UL94 V-0 @ 0.63 mm
- Approvals
- cULus Listed to UL508A and C22.2 No. 14
Current15 A max.
Short-Circuit Current Rating (SCCR)10 kA
Dielectric VoltageWithstands 1500 V per UL498
Storage Temperature-35°C to 80°C
Width74.1 mm / 2.9 in.
MountingTS35 DIN-Rail or direct panel mount
Terminal Torque0.79 Nm / 7 lb.-in.
Material Enclosure CoverPBT/polycarbonate blend, UL94 V-0 @ 0.63 mm
Spring MaterialStainless Steel
Enclosure TypeNEMA WD6, 5-15R
