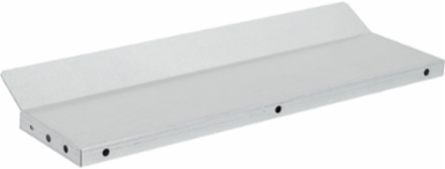

Square D HCT2DH26 I-Line Drip Hood, 26 Inch W x 9.5 Inch D, NEMA 2, 600 V AC/DC
- MPN: HCT2DH26
- UPC: 785901501442
- PPN: SCH-HCT2DH26
- UNSPSC: 39121112
CAD
$221.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The HCT2DH26 Drip Hood from Schneider Electric is an essential accessory designed for use with load centers and panel boards. Measuring 26 inches wide and 9.5 inches deep, this NEMA 2-rated hood efficiently protects electrical components from moisture and contaminants. Rated for 600 V AC/DC, it ensures safe and reliable operation in various power distribution applications, contributing to the overall integrity and longevity of your electrical systems. Designed with both functionality and durability in mind, this drip hood is a critical addition for anyone looking to maintain a clean and efficient electrical setup.
Features
- I-Line power distribution panelboard is the most versatile on the market
- Capable of feeding large motor loads and are utilized in almost every market segment
- Fully rated and series rated systems available
- Well suited to rearranging circuits
- Interior, front and circuit breakers require only a screwdriver for installation
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Depth | 2.52 in |
| Weight | 2860 g |
|---|
Complementary Attributes
| Ue Rated Operational Voltage | 600 V AC/DC 50/60 Hz |
|---|
Important Information Attributes
| Carbon Footprint Of The Distribution Phase A4 | 0.826504515053105, 0.8 kg CO2 eq. |
|---|---|
| Carbon Footprint Of The Installation Phase A5 | 0.003647742642793765, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | kg CO2 eq., 0 |
| Local Publishable Date | 2025-11-13 |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | I-Line |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 19 kg CO2 eq. |
| Data Source | extrapolated product |
| Width Nominal | 8.943 in |
| Customs Code | 7326908688 |
| Silicone Free | Yes |
| Functional Unit Description | Accommodate and protect control, command and protection devices via a panelboard cover/trim with door (2184.4 mm x 241.3 mm x 1073.15 mm) , providing protection levels IP = IP30 and IK = IK07,or a reference service life of 20 years, in commercial/industrial applications |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 97 |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 4 kg CO2 eq., 3.824810772751432 |
|---|---|
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 14 kg CO2 eq., 14.122473902660513 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1847 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Product Or Component Type | drip hood |
| Returnability | Yes |
| Sustainable Packaging | No |
| Database Version | 2024-01 |
| Height Nominal | 26 in |
| Nbr. Of Units In Pkg. | 1 |
| Halogen Free Status | Halogen free product |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Halogene Performance | Halogen free product |
| Mercury Free | Yes |
| Carbon Footprint | 18.777436933107843 |
| Eu Rohs Directive | Compliant By Exemption |
| Nema Degree Of Protection | NEMA 2 |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2509036EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Silicon Free | Yes |
| Environmental Disclosure | ENVPEP2509036EN |
| Halogen Content Performance | Halogen free product |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-10-15 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Product Or Component Type | drip hood |
|---|
| Range Of Product | I-Line |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
