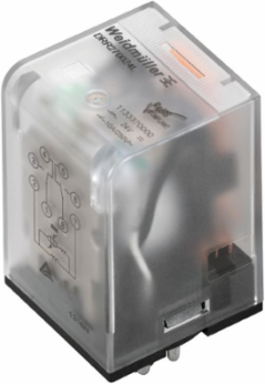

Weidmuller 2765320000 DRR273615L
- MPN: 2765320000
- PPN: WDM-2765320000
CAD
$39.30
/ EA
Available to Order from Manufacturer
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
DRR273615L
Documentation & Downloads
Specifications
Additional
| Rated Voltage | 250 V |
|---|---|
| Rated Switching Voltage | 250 V AC |
| DC Switching Capacity | 240 W @ 24 V (resistive, max) |
| Switch-On Delay | <30 ms |
| Inrush Current | 50 A / 50 ms |
| Min Switching Power | 10 mA @ 12 V |
| Rated Current AC | 29.8 mA (50 Hz), 25.4 mA (60 Hz) |
| Storage Temperature | -25 C to 55 C |
| Number of Contacts | 2 CO |
| Coil Resistance | 1250 10 % |
| Height | 34.5 mm (1.36 in) |
| Net Weight | 82.4 g |
| Status Indicator | Red LED |
| UL94 Flammability Rating (Relay Status Indicator) | HB |
| UL94 Flammability Rating (Relay Cover) | V-0 |
| Protection Degree | IP20 |
| Surge Voltage Category | III |
| Dielectric Strength (Neighbouring Contacts) | 2.5 kVeff / 1 min |
| Impulse Withstand Voltage | 4 kV (1.2/50 bc s) |
| Compliance | RoHS, UL (cURus, E312083) |
| Continuous Current | 10 A |
|---|---|
| AC Switching Capacity | 2500 VA (resistive, max) |
| Max Switching Frequency | 0.1 Hz |
| Switch-Off Delay | <20 ms |
| Mechanical Service Life | 10 x 106 Switching cycles |
| Rated Control Voltage | 115 V AC |
| Power Rating | 2.7 VA |
| Ambient Temperature | -25 C to 55 C |
| Contact Material | AgSnO |
| Depth | 66 mm (2.60 in) |
| Width | 34.5 mm (1.36 in) |
| Wire Connection Method | Plug-in connection |
| Mechanical Switch Position Indicator | Yes |
| UL94 Flammability Rating (Relay Baseplate) | V-0 |
| Humidity | 5% to 85% relative humidity, no condensation |
| Pollution Severity | 3 |
| Dielectric Strength (Control Side to Load Side) | 2.5 kVeff / 1 min |
| Dielectric Strength (Open Contact) | 1.2 kVeff / 1 min |
| Colour | Transparent |
