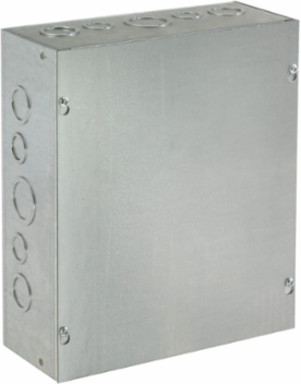

nVent Hoffman ASG12X12X8 Screw-Cover Enclosure Type 1 with Knockouts, 12x12x8, Galvanized, Steel
- MPN: ASG12X12X8
- UPC: 783510472207
- PPN: HOF-ASG12X12X8
- UNSPSC: 39121303
CAD
$86.80
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Screw-Cover Type 1 used in commercial and industrial applications requiring a junction or pull box. This Screw-Cover Type 1 with Knockouts, ASG12X12X8 item measures 12x12x8 inches with a material of Steel finish Galvanized.
Features
- Unique keyhole screw slots in the cover
- Available with or without knockouts
- Various sizes of easy-to-remove concentric knockouts on all four sides of standard boxes with knockouts
- Optional flush-mounted door frame available
- Optional flush covers
- Flat, removable covers fastened with plated steel screws
- Provision for grounding
- Mounting holes on back of box
- Enclosures are finished with paint over plated surfaces
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 305
- Protection Rating
- NEMA Type 1
- Body Thickness
- 1.52
- NEMA Rating
- 1 Indoor, electrical protection
- Knockouts Included
- Yes
- Knockout Pattern Along A Sides
- C-D-E-F-G
- Weight
- 11.8
- Size
- 12.00x12.00x8.00 in
Height (H)305
Depth (D)203
FinishGalvanized
Door Thickness1.52
IP RatingIP30
Cover Screw Quantity4
Knockout Pattern Along B SidesC-D-E-F-G
MaterialSteel
KnockoutsYes
