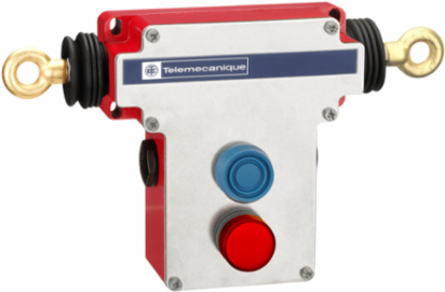

Telemecanique Sensors XY2CEDA296H7 Dual emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e 2x(1NC+1NO), 1/2" NPT, boot. pb, pilot light
Telemecanique Sensors XY2CEDA296H7 Dual emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e 2x(1NC+1NO), 1/2" NPT, boot. pb, pilot light
- MPN: XY2CEDA296H7
- PPN: TES-XY2CEDA296H7
- UNSPSC: 39122213
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1061.85/ EA
Description
This product is part of the XY2C range, an offer of emergency stop rope pull switches. It is ideal for all machines requiring stopping of dangerous movement in the immediate vicinity of the machine. It is suitable for applications such as woodworking machines, shears, conveyor systems, printing machines, textile machines etc. This emergency stop rope pull switch has 2 normally closed and 2 normally opened, slow-break contacts with positive opening operation. It is a switch with a rated operational current of 0.27A at 250V AC, 3A at 240V AC and a conventional enclosed thermal current of 10A. It is furnished with screw clamp terminals for electrical connection. Switch has three 1/2 inch NPT tapped conduit entries. The trigger cable anchor point at right and left hand side. Switch can reset by a booted pushbutton. Switch has a pilot light. It offers long mechanical durability which is about 60000 operating cycles. It is an IP66 rated product. The casing is made of Zamak (red) with stainless steel cover. Its dimensions are 11.22 inches (Width) x 4.17 inches (Depth) x 5.59 inches (Height) and weighs 4.19 lbs. This product meets UL508, CSA C22.2 No 14, EN/ISO 13850, EN/IEC 60947-5-1, EN/IEC 60204-1, EN/IEC 60947-5-5, machinery directive 2006/42/EC and work equipment directive 2009/104/EC standards. This product is certified by UL, CSA and CCC. XY2 range emergency stop rope pull switch is intended for all machines requiring stopping of a dangerous movement in the immediate vicinity of the machine.
Specifications
Specifications
- Range Of Product
- Telemecanique Emergency stop rope pull switches XY2C
- Housing Colour
- red RAL 3000
- Device Short Name
- XY2CED
Product Or Component Typedual emergency stop rope pull switch
Overvoltage Categoryclass I EN/IEC 61140
Complementary
- Reset
- by booted push-button
- Terminals Description Iso N°1
- (13-14)NO || (21-22)NC
- Bellow Material
- nitril
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- Local Signalling
- with pilot light, red, 24...130 V
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV EN/IEC 60947-1
- Connections - Terminals
- screw clamp terminal, 1 x 0.5...2 x 1.5 mm²
- [Ui] Rated Insulation Voltage
- 500 V 3)EN/IEC 60947-1 || 300 VUL 508 || 300 VCSA C22.2 No 14
- Contact Operation
- slow-break
- Mechanical Durability
- 60000 cycles
- Compatibility Code
- XY2CED
- Trigger Cable Anchor Point
- RH and LH sides
- Cover Material
- stainless steel
- Maximum Resistance Across Terminals
- 25 MOhm EN/IEC 60255-7 category 3
Number Of Cables2
Short-Circuit Protection10 A cartridge fuse gG EN/IEC 60269
Positive Openingwith EN/IEC 60947-5-1
MarkingCE
Net Weight1.9 kg
Trigger Cable Maximum Length2 x 100 m
Contacts Type And Composition2 x (1 NC + 1 NO)
[Ie] Rated Operational Current3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
Distance Between Cable Supports3-5 m
Cable Entry Number3 tapped entry 1/2" NPT conduit entry
Body Materialzamak
Safety Reliability DataB10d = 300000 value given for a life time of 20 years limited by mechanical or contact wear IEC 60947-5-5
Tightening Torque0.8-1.2 N.m
Safety Levelcan reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Product Certifications
- UL category NISD emergency stop devices || CSA || CCC || EAC
- Vibration Resistance
- 10 gn 10-300 Hz)EN/IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
Standardsmachinery directive 2006/42/EC || UL 508 || EN/IEC 60947-5-5 || EN/ISO 13850 || work equipment directive 2009/104/EC || CSA C22.2 No 14 || EN/IEC 60204-1 || EN/IEC 60947-5-1
Shock Resistance50 gn 11 ms EN/IEC 60068-2-27
Ip Degree Of ProtectionIP66 IEC 60529
Protective TreatmentTC
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111159EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
