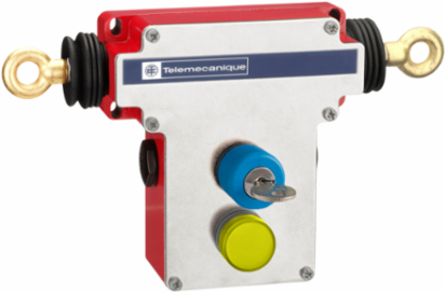

Telemecanique Sensors XY2CEDA596 Dual emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e 2x(1NC+1NO), Pg13.5, key release pb pilot light
- MPN: XY2CEDA596
- PPN: TES-XY2CEDA596
- UNSPSC: 39122213
CAD
$918.50
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Dual emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e 2x(1NC+1NO), Pg13.5, key release pb pilot light
Documentation & Downloads
Specifications
Key Specifications
- Housing Colour
- red RAL 3000
- Overvoltage Category
- class I EN/IEC 61140
- Device Short Name
- XY2CED
Range Of ProductTelemecanique Emergency stop rope pull switches XY2C
Product Or Component Typedual emergency stop rope pull switch
Complementary
- Trigger Cable Maximum Length
- 2 x 100 m
- Reset
- by key-release push-button
- Number Of Cables
- 2
- [Ui] Rated Insulation Voltage
- 500 V 3)EN/IEC 60947-1 || 300 VUL 508 || 300 VCSA C22.2 No 14
- Short-Circuit Protection
- 10 A cartridge fuse gG EN/IEC 60269
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
- Distance Between Cable Supports
- 3-5 m
- Positive Opening
- with EN/IEC 60947-5-1
- Compatibility Code
- XY2CED
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- Safety Reliability Data
- B10d = 300000 value given for a life time of 20 years limited by mechanical or contact wear IEC 60947-5-5
- Cover Material
- stainless steel
- Net Weight
- 1.9 kg
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV EN/IEC 60947-1
- Safety Level
- can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508
Connections - Terminalsscrew clamp terminal, 1 x 0.5...2 x 1.5 mm²
Contacts Type And Composition2 x (1 NC + 1 NO)
Terminals Description Iso N°1(13-14)NO || (21-22)NC
Key Number455
Bellow Materialnitril
Contact Operationslow-break
Mechanical Durability60000 cycles
Cable Entry Number3 plain hole Pg 13.5 or ISO M20 cable gland
Body Materialzamak
Trigger Cable Anchor PointRH and LH sides
MarkingCE
Local Signallingwith pilot light, yellow, 24...130 V
Tightening Torque0.8-1.2 N.m
Maximum Resistance Across Terminals25 MOhm EN/IEC 60255-7 category 3
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111159EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Standards
- EN/IEC 60204-1 || EN/IEC 60947-5-1 || EN/ISO 13850 || work equipment directive 2009/104/EC || CSA C22.2 No 14 || EN/IEC 60947-5-5 || machinery directive 2006/42/EC || UL 508
- Shock Resistance
- 50 gn 11 ms EN/IEC 60068-2-27
- Protective Treatment
- TC
Ambient Air Temperature For Storage-40-70 °C
Product CertificationsUL category NISD emergency stop devices || CSA || CCC || EAC
Vibration Resistance10 gn 10-300 Hz)EN/IEC 60068-2-6
Ip Degree Of ProtectionIP65 IEC 60529
