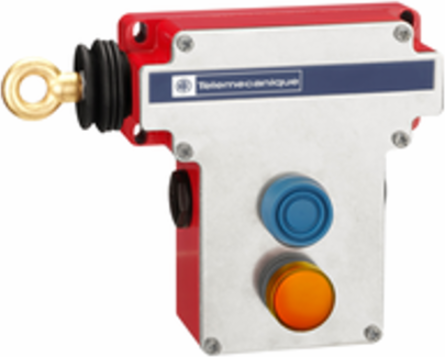

Telemecanique Sensors XY2CE2A296 Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, LH side, 2NC+2NO, pilot light 130 V
Telemecanique Sensors XY2CE2A296 Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, LH side, 2NC+2NO, pilot light 130 V
- MPN: XY2CE2A296
- PPN: TES-XY2CE2A296
- UNSPSC: 39122213
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1076.10/ EA
Description
This product is part of the XY2C range, an offer of emergency stop rope pull switches. This emergency stop rope pull switch has 2 normally closed + 2 normally opened, slow-break contacts with positive opening operation. It is a switch with a rated operational current of 0.27A at 250V AC, 3A at 240V AC and a conventional enclosed thermal current of 10A. It is furnished with screw clamp terminals for electrical connection and 3 plain hole for PG13.5 or ISO M20 cable gland. The trigger cable anchor point at left hand side. It can reset by booted pushbutton. It offers long mechanical durability which is about 60000 operating cycles. It is an IP66 rated product. The casing is made of Zamak (red) with stainless steel cover. It weighs 1.47kg. It is intended for all machine applications like woodworking machines, shears, conveyor systems, printing machines, textile machines, rolling mills, test laboratories, paint shops, surface treatment works, etc. This product is certified by CCC, CSA and UL. It meets CSA C22.2 No 14, EN/ISO 13850, EN/IEC 60947-5-1, EN/IEC 60204-1, EN/IEC 60947-5-5, UL 508 Machinery directive 2006/42/EC and Work equipment directive 2009/104/EC standards. These emergency stop rope pull switches can be equipped with trip indicators, cable tension adjustment can be performed using a turnbuckle. The emergency stop rope pull switch is intended for all machines requiring stopping of dangerous movement in the immediate vicinity of the machine. The emergency stop rope pull switch is designed to avert hazards (dangerous phenomena) at the earliest possible moment or to reduce risks which could cause injury to persons or damage either to machines or work in progress.
Specifications
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Product Certifications
- UL category NISD emergency stop devices || CSA || CCC
- Vibration Resistance
- 10 gn 10-300 Hz)EN/IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
StandardsEN/IEC 60947-5-5 || CSA C22.2 No 14 || machinery directive 2006/42/EC || EN/IEC 60204-1 || work equipment directive 2009/104/EC || EN/ISO 13850 || UL 508 || EN/IEC 60947-5-1
Shock Resistance50 gn 11 ms EN/IEC 60068-2-27
Ip Degree Of ProtectionIP66 IEC 60529
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111159EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Complementary
- Reset
- by booted push-button
- Terminals Description Iso N°1
- (21-22)NC || (13-14)NO
- Positive Opening
- with EN/IEC 60947-5-1
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- Local Signalling
- with pilot light, yellow, 24...130 V
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV EN/IEC 60947-1
- Connections - Terminals
- screw clamp terminal, 1 x 0.5...2 x 1.5 mm²
- [Us] Rated Supply Voltage
- 24...130 V AC/DC
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
- Distance Between Cable Supports
- 5-5 m
- Cable Entry Number
- 3 plain hole Pg 13.5 or ISO M20 cable gland
- Body Material
- zamak
- Safety Reliability Data
- B10d = 300000 value given for a life time of 20 years limited by mechanical or contact wear IEC 60947-5-5
- Tightening Torque
- 0.8-1.2 N.m
- Safety Level
- can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508
Number Of Cables1
Short-Circuit Protection10 A cartridge fuse gG EN/IEC 60269
Light Block Supplydirect
MarkingCE
Net Weight1.47 kg
Trigger Cable Maximum Length70 m
Contacts Type And Composition2 NC + 2 NO
[Ui] Rated Insulation Voltage400 V 3)EN/IEC 60947-1 || 300 VUL 508 || 300 VCSA C22.2 No 14
Contact Operationslow-break
Mechanical Durability60000 cycles
Compatibility CodeXY2CE
Trigger Cable Anchor PointLH side
Cover Materialstainless steel
Maximum Resistance Across Terminals25 MOhm EN/IEC 60255-7 category 3 || 25 MOhm NF C 93-050 method A
Specifications
- Range Of Product
- Telemecanique Emergency stop rope pull switches XY2C
- Housing Colour
- red RAL 3000
- Device Short Name
- XY2CE
Product Or Component Typelatching emergency stop rope pull switch
Overvoltage Categoryclass I EN/IEC 61140 || class I NF C 20-030
