Tripp Lite N520-12M Duplex Multimode Fiber Patch Cable 12M (40 ft.) LC/LC, OM2, 50/125 Micron
- MPN: N520-12M
- UPC: 037332156327
- PPN: TRP-N520-12M
CAD
$45.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

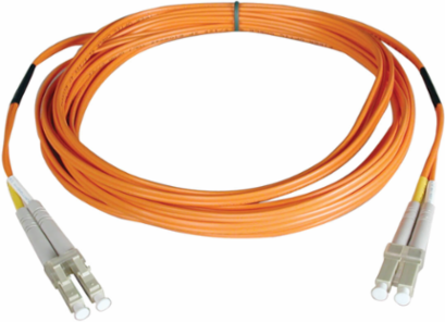

Duplex Multimode Fiber Patch Cable 12M (40 ft.) LC/LC, OM2, 50/125 Micron
Features
- Premium PVC multimode patch cables
- Attenuation loss meets or exceeds the latest industry standards
- Higher bandwidth, optimized for gigabit and 10Gbps networks
- Backward compatible with 62.5 micron fiber
- Built-in headroom for future applications
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Documentation & Downloads
Specifications
Additional
| Optical Mode | OM2 |
|---|---|
| Network Speed | 1 Gbps |
| Core Diameter | 50 micron |
| Bandwidth | 220 MHz-km @850NM, 600 MHz-km @1300NM |
| Insertion Loss | 0.2 dB typical |
| Primary Coating Material | Acrylate |
| Connector Type | LC duplex (male) both ends |
| Approvals | FDDI, OFNR rated |
| Color | Orange |
| Number of Fibers | 2 |
|---|---|
| Length | 39.4 ft (472.4 in.) |
| Clad Diameter | 125 micron |
| Attenuation | 3.5 dB/km @850NM, 1.0 dB/km @1300NM |
| Material | PVC jacket |
| Secondary Coating Material | PVC |
| Certifications | RoHS compliant |
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
