Tripp Lite N506-50M 50M Duplex Multimode Fiber Patch Cable SC/SC, 50/125 Micron, OM2
- MPN: N506-50M
- UPC: 037332119599
- PPN: TRP-N506-50M
CAD
$154.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

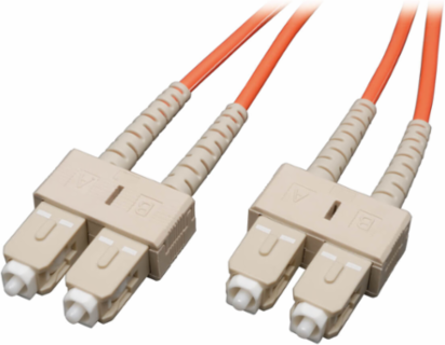

50M Duplex Multimode Fiber Patch Cable SC/SC, 50/125 Micron, OM2
Features
- Premium PVC 50/125 multimode patch cables
- Attenuation loss meets or exceeds the latest industry standards
- Higher bandwidth optimized for gigabit and 10Gbps networks
- Backward compatible with 62.5 micron fiber
- Built-in headroom for future applications
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Documentation & Downloads
Specifications
Additional
| Cable Length | 50 m (164 ft) |
|---|---|
| Core Diameter | 50 micron |
| Optical Mode | OM2 |
| Fiber Type | 50/125 micron Duplex Multimode |
| Material | PVC Jacket |
| Bandwidth | 220 MHz-km @ 850nm min, 600 MHz-km @ 1300nm min |
| Proof Test Level | 100,000 PSI |
| Color | Orange |
| Product Warranty Period | Lifetime limited warranty |
| Shipping Dimensions | 12.00 x 10.00 x 1.00 in. |
| Number of Fibers | 2 |
|---|---|
| Clad Diameter | 125 micron |
| Network Speed | 1 Gbps |
| Connector Type | SC Duplex Male to SC Duplex Male |
| Attenuation | 3.5 dB/km @ 850nm max, 1.0 dB/km @ 1300nm max |
| Numeric Aperture | 0.275 nominal |
| Insertion Loss | 0.2 dB typical |
| Compliance | FDDI rated, OFNR rated |
| Shipping Weight | 0.86 lbs. |
| Push/Pull Tabs | No |
