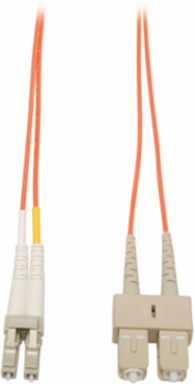

5M Duplex Multimode 50/125 Fiber Patch Cable LC/SC, FDDI Rated, OM2
Tripp Lite

Tripp Lite N516-05M 5M Duplex Multimode 50/125 Fiber Patch Cable LC/SC, FDDI Rated, OM2

  • MPN: N516-05M
  • UPC: 037332119568
  • PPN: TRP-N516-05M

CAD

$27.90

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

5M Duplex Multimode 50/125 Fiber Patch Cable LC/SC, FDDI Rated, OM2

Features

  • Premium PVC 50/125 multimode patch cables
  • Attenuation loss meets or exceeds the latest industry standards
  • Higher bandwidth optimized for gigabit and 10Gbps networks
  • Backward compatible with 62.5 micron fiber
  • Built-in headroom for future applications
  • This product is covered by a Lifetime Limited Warranty ( coverage details )

Documentation & Downloads

Specifications

Additional

Cable Length
5 m (16.4 ft)
Optical Mode
OM2
Core Diameter
50 micron
Attenuation
3.5 dB/km @850nm max, 1.0 dB/km @1300nm max
Cable Jacket Rating
LSZH (Low Smoke Zero Halogen)
Bandwidth
220 MHz-km @850nm min, 600 MHz-km @1300nm min
Proof Test Level
100,000 PSI
Primary Coating Diameter
245 micron
Secondary Coating Diameter
900 micron
Color
Orange
Side B Connector
SC duplex male
Product Warranty Period
Lifetime limited warranty
Push/Pull Tabs
No
Shipping Dimensions
9.00 x 7.00 x 0.50 in.
Number of Fibers2
Network Speed1 Gbps
Clad Diameter125 micron
Insertion Loss0.2 dB typical
Fiber Type50/125 micron multimode
Numeric Aperture.275 nominal
Primary Coating MaterialAcrylate
Secondary Coating MaterialPVC
TechnologyMultimode
Side A ConnectorLC duplex male
ApprovalsFDDI Rated, OFNR Rated
UPC Code037332119568
Lithium BatteriesNo
Shipping Weight0.07 lbs.
