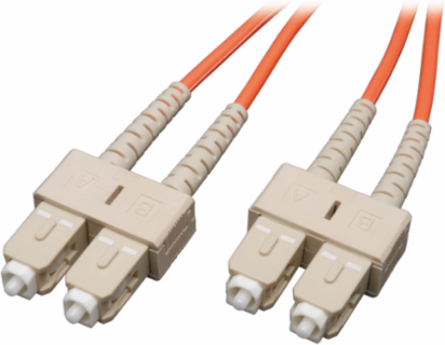

Tripp Lite N506-05M 5M Duplex Multimode 50/125 Fiber Patch Cable SC/SC, 1Gbps, Lifetime Warranty
- MPN: N506-05M
- UPC: 037332118936
- PPN: TRP-N506-05M
CAD
$38.59
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
5M Duplex Multimode 50/125 Fiber Patch Cable SC/SC, 1Gbps, Lifetime Warranty
Features
- Premium PVC 50/125 multimode patch cables
- Attenuation loss meets or exceeds the latest industry standards
- Higher bandwidth optimized for gigabit and 10Gbps networks
- Backward compatible with 62.5 micron fiber
- Built-in headroom for future applications
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Documentation & Downloads
Specifications
Additional
| Network Speed | 1 Gbps |
|---|---|
| Number of Fibers | 2 |
| Clad Diameter | 125 micron |
| Technology | Multimode |
| Bandwidth | 220 MHz-KM @850nm, 600 MHz-KM @1300nm |
| Primary Coating Material | Acrylate |
| Secondary Coating Material | PVC |
| Cable Jacket Material | PVC |
| Numeric Aperture | 0.275 nominal |
| Warranty | Lifetime limited warranty |
| Cable Length | 16.4 ft (5 m) |
|---|---|
| Core Diameter | 50 micron |
| Connectors | SC Duplex (Male) to SC Duplex (Male) |
| Optical Mode | OM2 |
| Attenuation | 3.5 dB/km @850nm, 1.0 dB/km @1300nm |
| Primary Coating Diameter | 245 micron |
| Secondary Coating Diameter | 900 micron |
| Proof Test Level | 100,000 PSI |
| Approvals | FDDI rated, OFNR rated |
| Color | Orange |
