Carlon

Carlon E97DSI Round Floor Boxes, Covers & Accessories

Round Floor Boxes, Covers & Accessories
  • MPN: E97DSI
  • UPC: 034481111986
  • PPN: T-B-E97DSI

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$74.92/ EA

Description

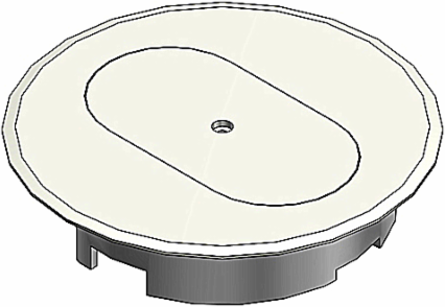

Cover for Round Floor Box, Diameter 5.69 Inches, Color Ivory, Non-Metallic, For use with Duplex Devices

Features

  • High impact resistant thermoplastic.
  • Compatible with standard NEMA duplex and 1-1/2 Inch NPS receptacles.
  • Drill points (3/8 Inch) provided for low voltage cable pass through.
  • 1-1/4 Inch NPS plugs may be modified to accept smaller fittings, sizes 3/8 Inch, 1/2 Inch and 1 Inch.
  • UL scrub water tested, approved for all types of finish flooring.

Specifications

North American Specifications (UNSPSC)

UNSPSC
39121307 Floor boxes
Brand Name
Carlon
Special Features
High impact resistant thermoplastic.
Standard
UL E11461
Color
Ivory
IGCC4432 Floor boxes
TypeRound Floor Boxes, Covers & Accessories
ApplicationFor tile and carpet applications
MaterialNon-Metallic

European Specifications (ETIM)

ETIM
EC001906 Mounting cover for underfloor draw-in box
Cover mounting opening
Y
Material
Other
Mounting openingRound
Floor maintenanceDry

Packaging

Outer Quantity
10
Weight Uom
0.37 lbs. Each
Outer Dimensions (inches)16.3x6.3x6.7
