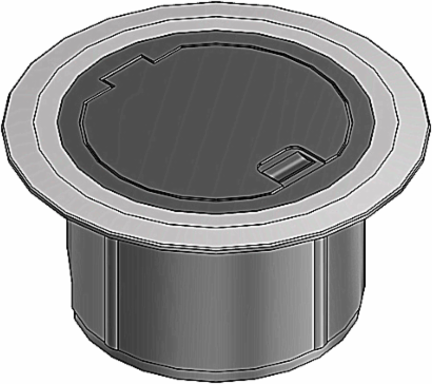

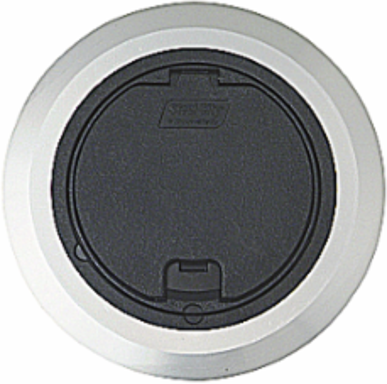

Steel City 68R-CST-ALM Recessed Floor Box Cover Kit, 6-3/8 Inch Base, Black with Aluminum Flange
- MPN: 68R-CST-ALM
- UPC: 785991044454
- PPN: T-B-68R-CST-ALM
CAD
$249.08
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Recessed Service Floor Box Cover Kit, Accepts Duplex Receptacles GFI Receptacles and 2 Port Keystone Data Plate, Black with Aluminum Flange, For use with Flush Service Floor Box, 100 Cubic Inches, Opening Diameter 5-5/32 Inches, Base Diameter 6-3/8 Inches, Depth 6 Inches, 3/4 Inch and 1 Inch Conduit Tapping, Plastic, For Power or Communications/Data and Wood Sub-Floor and Raised Floor Applications
Features
- Unique cover provides aesthetic recessed service
- Patented lid can be rotated to expose a small opening for cords, enabling the lid to close flush with the floor while in use.
- Cover accepts 1-duplex or GFCI receptacle, no special device plates required.
- Cover accepts up to two communications jacks
- Includes (1)-2-port keystone data plate and 1-blank data plate for customer cut-outs or power only applications.
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121307 Floor boxes |
|---|---|
| Brand Name | Steel City |
| Special Features | Unique cover provides aesthetic recessed service |
| Standard | UL E11461 |
| Color | Black with Aluminum Flange |
| IGCC | 4432 Floor boxes |
|---|---|
| Type | Flush Service |
| Application | For use with 68 P round floor box |
| Material | Non-Metallic |
Packaging
| Inner Quantity | 1 |
|---|---|
| Outer Quantity | 4 |
| Weight Uom | 1.38 lbs. Each |
| Inner Dimensions (inches) | 6.25x6x5.12 |
|---|---|
| Outer Dimensions (inches) | 16.75x15x7.25 |
European Specifications (ETIM)
| ETIM | EC001906 Mounting cover for underfloor draw-in box |
|---|---|
| Cover mounting opening | Y |
| Material | Aluminium |
| Mounting opening | Round |
|---|---|
| Floor maintenance | Dry |
