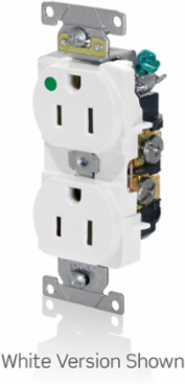

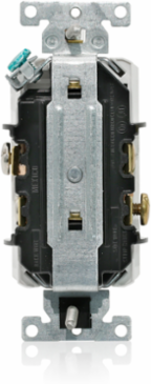

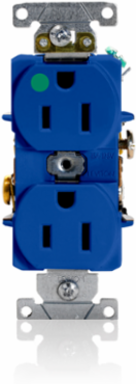

Leviton 8200-HBU 15 Amp Hospital Grade Duplex Receptacle, Self-Grounding, NEMA 5-15R
- MPN: 8200-HBU
- UPC: 078477452646
- PPN: LEV-8200-HBU
CAD
$8.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Duplex Receptacle Outlet, Heavy-Duty Hospital Grade, Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Blue
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | True |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NEMA | WD-1 & WD-6 |
| RoHS | Compliant |
| UL498HG | File E13399 |
| CSA C22.2 No. 42 | File 152105 |
|---|---|
| NOM | 057 |
| UL Fed Spec WC-596 | File E13399 |
| Warranty | 10-Year Limited |
Material Specifications
| Body Material | PBT Polyester Blend |
|---|---|
| Ground Clips | Brass |
| Line Contacts | 0.030" Phosphor Bronze |
| Terminal Screws | #8 Triple-Drive Brass |
| Face Material | PBT Polyester Blend |
|---|---|
| Grounding Screw | #8 Hex Head, Triple-Drive Brass |
| Strap Material | Steel (Galvanized G60) |
Mechanical Specifications
| Product ID | Ratings are permanently marked on device |
|---|---|
| Terminal Accom. | #14-#10 AWG |
| Termination | Back and Side Wire |
| Screw Terminal Torque | 14-18 in-lbs |
|---|---|
| Terminal ID | Brass-Hot, Silver-Neutral, Green-Ground |
Product Features
| Color | Blue |
|---|---|
| Grade | Heavy-Duty Hospital Grade |
| Device Type | Duplex Receptacle Outlet |
|---|
Environmental Specifications
| Flammability | Rated V-0 per UL 94 |
|---|
| Operating Temperature | -40°C to 75°C |
|---|
Electrical Specifications
| Amperage | 15 A |
|---|---|
| Grounding | Self-Grounding |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Wire | 3 |
| Dielectric Voltage | Withstands 3000V min |
|---|---|
| Pole | 2 |
| Voltage | 125 VAC |
AC Horsepower Ratings
| Horsepower Rating | 1/2 HP |
|---|
