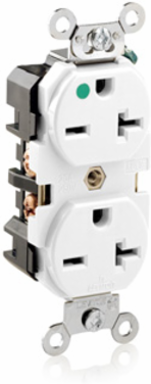

Leviton 8400-W Heavy-Duty Hospital Grade Duplex Outlet, 20 Amp, 250 Volt, Self-Grounding
Leviton 8400-W Heavy-Duty Hospital Grade Duplex Outlet, 20 Amp, 250 Volt, Self-Grounding
- MPN: 8400-W
- UPC: 078477492574
- PPN: LEV-8400-W
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$44.64/ EA
Description

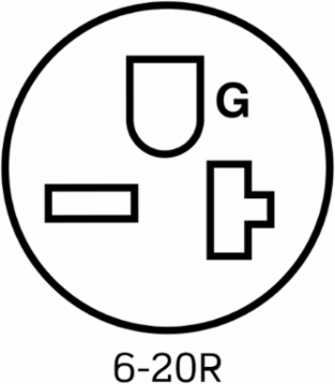

Duplex Receptacle Outlet, Extra Heavy-Duty Hospital Grade, Smooth Face, 20 Amp, 250 Volt, Back or Side Wire, NEMA 6-20R, 2-Pole, 3-Wire, Self-Grounding - White
Features
- All Leviton Hospital Grade Receptacles undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high-abuse tolerance, including health care facilities, manufacturing plants and schools.
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL Fed Spec WC-596
- File E13399
- Warranty
- 10-Year Limited
CSA C22.2 No. 42File 152105
NOM057
UL498HGFile E13399
Material Specifications
- Body Material
- Nylon
- Color
- White
- Ground Clips
- Nickel-Plated Brass
- Line Contacts
- Nickel-Plated Brass Triple-Wipe .031 Thick
- Terminal Screws
- Nickel-Plated Brass 10-32
Clamp NutsNickel-Plated Brass
Face MaterialNylon
Grounding ScrewNickel-Plated Brass 8-32
Strap MaterialBrass
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Terminal Accom.
- 14-10 AWG
- Termination
- Back or Side Wire
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantTrue
Product Features
- Device Type
- Duplex Receptacle Outlet
GradeHeavy-Duty Hospital Grade
Environmental Specifications
- Flammability
- Rated V-2 per UL94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 250 VAC
Current LimitingFull Rated Current
GroundingSelf-Grounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
AC Horsepower Ratings
- Horsepower Rating
- 2 HP
