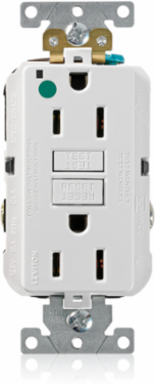

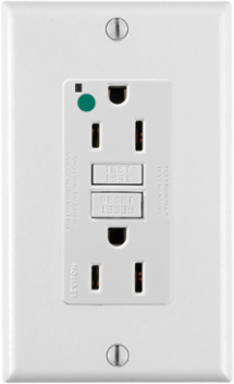

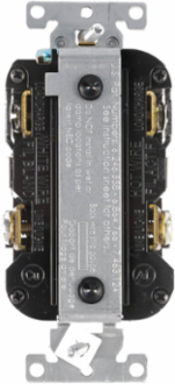

Leviton GFNT1-HGW SmartlockPro GFCI Receptacle Outlet, 15 Amp, Hospital Grade, Duplex
- MPN: GFNT1-HGW
- UPC: 078477725030
- PPN: LEV-GFNT1-HGW
CAD
$57.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
SmartlockPro Self-Test GFCI Duplex Receptacle Outlet, Extra Heavy-Duty Hospital Grade, Wallplate Included, Power Indication, 15 Amp, 20 Amp Feed-Through, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - White
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Standards and Certifications
- ANSI
- C-73
- Certification/Listing
- UL, CSA, NOM-ANCE
Applicable StandardsUL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
NEMAWD-1 & WD-6
Material Specifications
- Body Material
- Polycarbonate
- Ground Clips
- Brass
- Line Contacts
- Brass
- Terminal Clamp
- Brass
Face MaterialPBT
Grounding ScrewPlated Steel
Strap MaterialGalvanized Steel
Terminal ScrewsPlated Steel
Mechanical Specifications
- Product ID
- Ratings are permenantly marked on device
- Terminal Accom.
- 14-10 AWG solid or stranded
- Termination
- Back or Side Wire
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Trip LevelClass A, 5mA plus or minus 1mA
Product Features
- Brand
- SmartlockPro
- Device Type
- Duplex Receptacle Outlet
- Function
- GFCI
ColorWhite
FeatureWallplate Included|Power Indication
GradeExtra Heavy-Duty Hospital Grade
Warranty
- Warranty
- 2-Year Limited
Environmental Specifications
- Flammability
- Rated V-0 per UL 94
Operating Temperature-35C to +66C
Electrical Specifications
- Amperage
- 15 A & 20 A Feed-Through
- Pole
- 2
- Voltage
- 125 VAC
GroundingSelf-Grounding
Short Circuit Current Rating10kA
Wire3
AC Horsepower Ratings
- At Rated Voltage
- 1 HP
