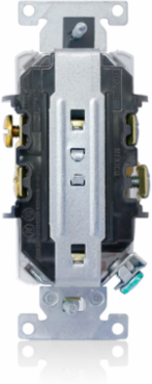

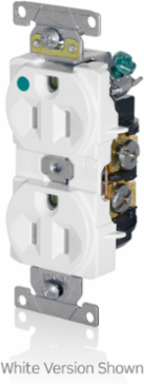

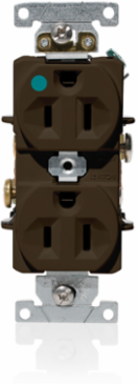

Leviton C8200 Heavy-Duty Hospital Grade Duplex Receptacle Outlet 15 Amp 125 Volt NEMA 5-15R Brown
Leviton C8200 Heavy-Duty Hospital Grade Duplex Receptacle Outlet 15 Amp 125 Volt NEMA 5-15R Brown
- MPN: C8200
- UPC: 078477722237
- PPN: LEV-C8200
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$25.23/ EA
Description
Duplex Receptacle Outlet, Heavy-Duty Hospital Grade, Indented Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Brown
Specifications
Material Specifications
- Body Material
- PBT Polyester Blend
- Ground Clips
- Brass
- Grounding Screw
- #8 hex head, triple drive Brass
- Mounting Screws
- Triple-Drive Plated Steel
- Terminal Clamps
- Brass
Face MaterialPBT Polyester Blend
Ground Contacts0.030" Brass
Line Contacts0.030" Phosphor Bronze
Strap MaterialSteel
Terminal Screws#8 Triple-Drive Brass
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Terminal Accom.
- #14 AWG - #10 AWG
- Termination
- Back or Side Wire
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass - Hot, Green - Ground, Silver - Neutral
Wire TypeStranded or Solid
Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
AC Horsepower Rating
- Horsepower Rating
- 1/2 HP
Product Features
- Color
- Brown
- Device Type
- Duplex Receptacle Outlet
- NEMA
- 5-15R
Color / FeatureBrown
GradeHeavy-Duty Hospital Grade
Environmental Specifications
- Flammability
- Rated V-0 per UL 94
Operating Temperature-40°C to 75°C
Electrical Specifications
- Amperage
- 15 A
- Grounding
- Self-Grounding
- Temperature Rise
- Max 30 °C after 250 cycles OL at 200 percent rated current
- Wire
- 3
Dielectric VoltageWithstands 3000 V minimum
Pole2
Voltage125 VAC
Standards & Certifications
- ANSI
- C-73
- Certification/Listing
- cULus, NOM-ANCE
Applicable StandardsUL 498, Fed Spec W-C-596, CSA C22.2. No. 42
RoHSRoHS Compliant
