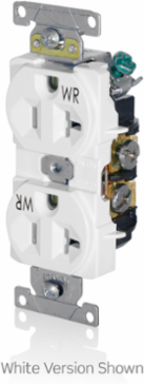

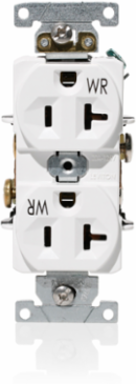

Leviton WBR20-W Heavy-Duty Duplex Receptacle Outlet 20 Amp 125 Volt NEMA 5-20R Weather-Resistant
- MPN: WBR20-W
- UPC: 078477395950
- PPN: LEV-WBR20-W
CAD
$21.27
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Weather-Resistant, Indented Face, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - White
Features
- Leviton’s line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Standards and Certifications
- ANSI
- C-73
- NOM
- 057
- Warranty
- 2-Year Limited
CSA C22.2 No. 42File 152105
UL 498File E13399
Material Specifications
- Body Material
- Nylon
- Face Material
- UV Resistant Thermoplastic
- Grounding Screw
- Brass 8-32
- Product ID
- Ratings permanently marked on device
- Terminal Accom.
- 14-10 AWG
- Terminal Screws
- Brass 10-32
ColorWhite
Ground ClipsBrass-Plated
Line ContactsBrass Triple-Wipe .031 Thick
Strap MaterialNickel-Plated Brass
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
TerminationBack or Side Wire
Mechanical Specifications
- Color
- White
- Product ID
- Ratings permanently marked on device
- Terminal Accom.
- 14-10 AWG
- Termination
- Back or Side Wire
NEMA5-20R
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Product Features
- NOM
- 057
Warranty
- At Rated Voltage
- 1 HP
Warranty10-Year Limited
Environmental Specifications
- Body Material
- Nylon
- Face Material
- UV Resistant Thermoplastic
- Ground Clips
- Brass-Plated
- Line Contacts
- Brass Triple-Wipe .031 Thick
- Strap Material
- Nickel-Plated Brass
ColorWhite
FlammabilityRated V-2 per UL 94
Grounding ScrewBrass 8-32
Operating Temperature-40°C to 60°C
Terminal ScrewsBrass 10-32
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Grounding
- Self-Grounding
- Pole
- 2
- Voltage
- 125 VAC
Current LimitingFull Rated Current
FlammabilityRated V-2 per UL 94
Operating Temperature-40°C to 60°C
Temperature RiseMax 30C after 100 cycles OL at 150 percent rated current
Wire3
AC Horsepower Ratings
- Amperage
- 20 A
- Current Limiting
- Full Rated Current
- Grounding
- Self-Grounding
- Temperature Rise
- Max 30C after 100 cycles OL at 150 percent rated current
- Wire
- 3
At Rated Voltage1 HP
Dielectric VoltageWithstands 2000V per UL498
Pole2
Voltage125 VAC
