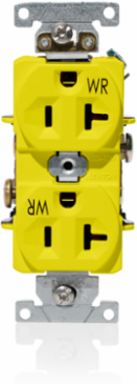

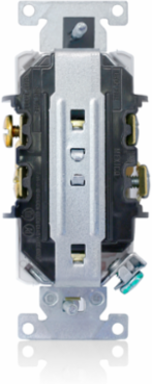

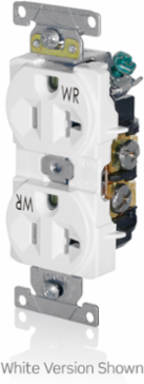

Leviton WBR20-Y Heavy-Duty Duplex Receptacle Outlet, 20 Amp 125 Volt, Weather-Resistant, Self-Grounding
- MPN: WBR20-Y
- UPC: 078477335314
- PPN: LEV-WBR20-Y
CAD
$21.27
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Weather-Resistant, Indented Face, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Yellow
Features
- Leviton’s line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Material Specifications
- Body Material
- PBT Polyester Blend
- Ground Clips
- Brass
- Grounding Screw
- #8 hex head, triple drive Brass
- Mounting Screws
- Triple-Drive Plated Steel
- Strap Material
- Steel
- Terminal Clamps
- Brass
- Terminal Screws
- #8 Triple-Drive Brass
- Wire Type
- Stranded or Solid
Face MaterialPBT Polyester Blend
Ground Contacts0.030" Brass
Line Contacts0.030" Phosphor Bronze
Product IDRatings are permanently marked on device
Terminal Accom.#14 AWG - #10 AWG
Terminal IDBrass - Hot, Green - Ground, Silver - Neutral
TerminationBack or Side Wire
Mechanical Specifications
- Color
- Yellow
- Device Type
- Duplex Receptacle Outlet
- Feature 2
- Weather-Resistant
- Grade
- Heavy-Duty Industrial Specification Grade
- Product ID
- Ratings are permanently marked on device
- Terminal Accom.
- #14 AWG - #10 AWG
- Termination
- Back or Side Wire
Color / FeatureBlack
FeatureWeather-Resistant
Feature 4Indented Face
NEMA5-20R
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass - Hot, Green - Ground, Silver - Neutral
Wire TypeStranded or Solid
AC Horsepower Rating
- Amperage
- 20 A
- Dielectric Voltage
- Withstands 3000 V minimum
- Horsepower Rating
- 1 HP
- Temperature Rise
- Max 30 °C after 250 cycles OL at 200 percent rated current
- Wire
- 3
Current LimitingFull Rated Current
GroundingSelf-Grounding
Pole2
Voltage125 VAC
Product Features
- CSA C22.2 No. 42
- File 152105
- UL 498
- File E13399
NOM057
Warranty
- At Rated Voltage
- 1 HP
- Warranty
- 10-Year Limited
Horsepower Rating1 HP
Environmental Specifications
- Body Material
- PBT Polyester Blend
- Face Material
- PBT Polyester Blend
- Ground Clips
- Brass
- Grounding Screw
- #8 hex head, triple drive Brass
- Mounting Screws
- Triple-Drive Plated Steel
- Strap Material
- Steel
- Terminal Screws
- #8 Triple-Drive Brass
ColorYellow
FlammabilityRated V-2 per UL 94
Ground Contacts0.030" Brass
Line Contacts0.030" Phosphor Bronze
Operating Temperature-40°C to 75°C
Terminal ClampsBrass
Electrical Specifications
- Amperage
- 20 A
- Flammability
- Rated V-2 per UL 94
- Operating Temperature
- -40°C to 75°C
- Temperature Rise
- Max 30 °C after 250 cycles OL at 200 percent rated current
- Wire
- 3
Dielectric VoltageWithstands 3000 V minimum
GroundingSelf-Grounding
Pole2
Voltage125 VAC
Standards & Certifications
- ANSI
- C-73
- Certification/Listing
- cULus, NOM-ANCE
Applicable StandardsUL 498, Fed Spec W-C-596, CSA C22.2. No. 42
RoHSRoHS Compliant
