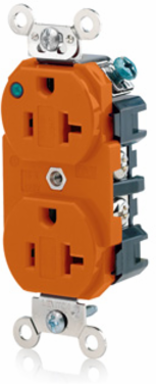

Leviton 8300-PLO 20 Amp Duplex Receptacle/Outlet, Hospital Grade, Power Indication, Self-Grounding
Leviton 8300-PLO 20 Amp Duplex Receptacle/Outlet, Hospital Grade, Power Indication, Self-Grounding
- MPN: 8300-PLO
- UPC: 078477511893
- PPN: LEV-8300-PLO
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$58.66/ EA
Description
Duplex Receptacle Outlet, Extra Heavy-Duty Hospital Grade, Power Indication, Smooth Face, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Orange
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- RoHS
- Non-Compliant
- UL498HG
- File E13399
CSA C22.2 No. 42File 152105
NOM057
UL Fed Spec WC-596File E13399
Warranty10-Year Limited
Material Specifications
- Body Material
- Nylon
- Color
- Orange
- Ground Clips
- Nickel-Plated Brass
- Line Contacts
- Nickel-Plated Brass Triple-Wipe .040 Thick
- Terminal Screws
- Plated Brass
Clamp NutsZinc-Plated Steel
Face MaterialNylon
Grounding ScrewPlated Brass
Strap MaterialNickel-Plated Brass
Mechanical Specifications
- Product ID
- Markings are permanently marked on device
- Terminal Accom.
- 14-10 AWG
- Termination
- Back or Side Wire
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Torque Range14-16 inch pounds
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Product Features
- Device Type
- Duplex Receptacle Outlet
- Feature 4
- Smooth Face
Feature 3Power Indication
GradeExtra Heavy-Duty Hospital Grade
Environmental Specifications
- Flammability
- Rated V-2 per UL94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current LimitingFull Rated Current
GroundingSelf-Grounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
AC Horsepower Ratings
- Horsepower Rating
- 1 HP
