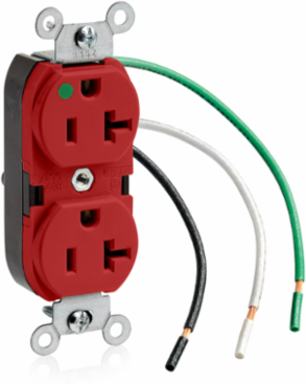

Leviton 8300-LR 20 Amp Heavy-Duty Hospital Grade Duplex Receptacle, NEMA 5-20R, Self-Grounding
Leviton 8300-LR 20 Amp Heavy-Duty Hospital Grade Duplex Receptacle, NEMA 5-20R, Self-Grounding
- MPN: 8300-LR
- UPC: 078477284025
- PPN: LEV-8300-LR
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$47.00/ EA
Description
Duplex Receptacle Outlet, Heavy-Duty Hospital Grade, Smooth Face, 20 Amp, 125 Volt, Pre-Wired Leads, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Red
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL Fed Spec WC-596
- File E13399
CSA C22.2 No. 42File 152105
NOM057
Warranty10-Year Limited
Material Specifications
- Body Material
- Nylon
- Color
- Red
- Ground Clips
- Brass-Plated
- Grounding Screw
- 12GA THHN Green Wire Lead 6 Inch
- Mounting Screws
- Steel
- Terminal Leads
- 6", #12 AWG THHN
- Yoke
- Zinc-Plated Steel
BushingDie Cast Aluminum
Face MaterialNylon
Grounding Leads6", #12 AWG THHN
Line ContactsPhosphor Bronze
Strap MaterialSteel
Terminal Screws12GA THHN Wire Leads 6 Inch
Mechanical Specifications
- Lead Identification
- Leads identified in accordance with UL 498
- Screw Terminal Torque
- 14-18 in-lbs
- Termination
- Pre-Wired Leads
Product IDMarkings are permanently marked on device
Terminal IDBlack-Hot, Green-Ground, White-Neutral
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Product Features
- Device Type
- Duplex Receptacle Outlet
- Grade
- Heavy-Duty Hospital Grade
Feature 4Smooth Face
Environmental Specifications
- Flammability
- Rated V-2 per UL94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current LimitingFull Rated Current
GroundingSelf-Grounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
AC Horsepower Ratings
- At Rated Voltage
- 1 HP
Horsepower Rating1 HP
