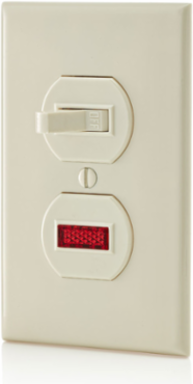

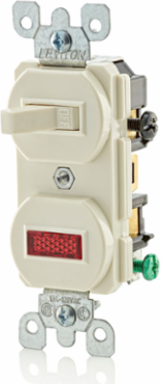

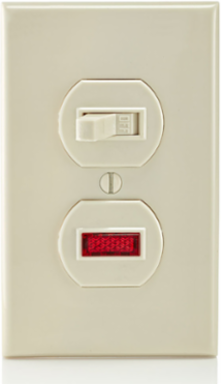

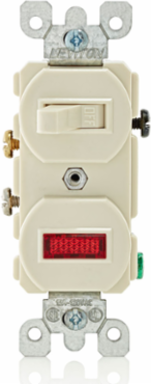

Leviton 5226-T 15 Amp Duplex Style Single-Pole Neon Pilot AC Combination Switch, 120 Volt, Light Almond
- MPN: 5226-T
- UPC: 078477274897
- PPN: LEV-5226-T
CAD
$8.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15 Amp, 120 Volt, Duplex Style Single-Pole / Neon Pilot AC Combination Switch, Commercial Grade, Non-Grounding, Side Wired - Light Almond
Features
- With Leviton’s extensive assortment of combination devices, you can fill a one-gang space with two switches, a switch and receptacle, even a switch and GFCI. From sensor guide lights to multi-purpose styles and Tamper-Resistant receptacles, we accommodate your every need. These devices come in a range of colors and are backed by a limited two-year warranty. Built to last and designed to save space, these attractively styled devices are at home in any setting.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Product Features
| Actuator Material | Thermoplastic |
|---|---|
| Body Material | Thermoplastic |
| Feature | Single-Pole / Neon Pilot |
| HP Rating | 1/2HP-120V |
| Pole | 1 |
| Strap Material | Steel |
| Torque Range | 14 – 18 in.-lbs |
| Voltage | 120 VAC |
| Amperage | 15 A |
|---|---|
| Color | Light Almond |
| Grounding | Non-Grounding |
| Max. Amperage | 12 Amp |
| Standards and Certifications | UL/CSA |
| Termination | Side |
| Type | Duplex Style Combination Switch |
| Warranty | 2-Year Limited |
