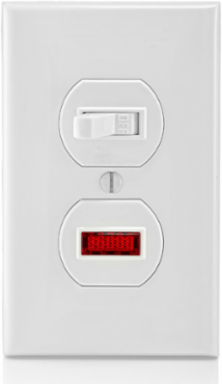

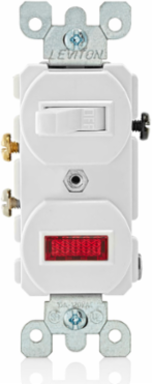

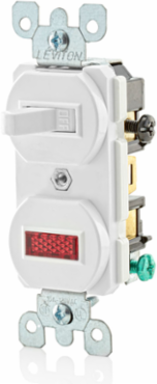

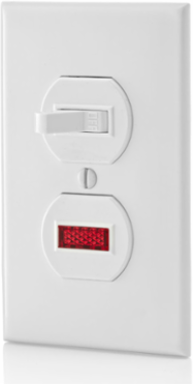

Leviton 5226-W 15 Amp 120 Volt Duplex Style Neon Pilot Combination Switch, Thermoplastic, White
- MPN: 5226-W
- UPC: 078477227008
- PPN: LEV-5226-W
CAD
$17.35
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15 Amp, 120 Volt, Duplex Style Single-Pole / Neon Pilot AC Combination Switch, Commercial Grade, Non-Grounding, Side Wired - White
Features
- With Leviton’s extensive assortment of combination devices, you can fill a one-gang space with two switches, a switch and receptacle, even a switch and GFCI. From sensor guide lights to multi-purpose styles and Tamper-Resistant receptacles, we accommodate your every need. These devices come in a range of colors and are backed by a limited two-year warranty. Built to last and designed to save space, these attractively styled devices are at home in any setting.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NEMA | WD-1 & WD-6 |
| UL Standard | UL 20 |
| CSA C22.2 No. 111 | File #152105 |
|---|---|
| NOM | 057 |
| Warranty | 2-Year Limited |
Material Specifications
| Actuator Material | Thermoplastic |
|---|---|
| Color | White |
| Body Material | Thermoplastic |
|---|
Mechanical Specifications
| Product ID | Stamped on Strap |
|---|---|
| Terminal ID | Brass-Hot Black-Hot White-Neutral Green-Gnd |
| Torque Range | 14 – 18 in.-lbs |
| Terminal Accom. | 14-12 AWG |
|---|---|
| Termination | Side |
Product Features
| Amperage | 15 A |
|---|---|
| Product Type | Switch/Pilot Combo |
| Voltage | 120 VAC |
| Feature | Single-Pole / Neon Pilot |
|---|---|
| Type | Duplex Style Combination Switch |
Environmental Specifications
| Flammability | Rated V-2 per UL 94 |
|---|
| Operating Temperature | -40°C to 65°C |
|---|
Electrical Specifications
| Dielectric Voltage | Withstands 1500V for 1 minute |
|---|---|
| Neon Pilot Light Voltage | 120V AC |
| Pole | 1 |
| Switch Voltage | 120/277V AC |
| Grounding | Grounding |
|---|---|
| Overload UL20 Test | 100 cycles of OL at 4.8 times rated current |
| Switch Amperage | 15 Amp |
| Temperature Rise | Maximum 30 degrees C rise |
AC Horsepower Ratings
| HP Rating | 1/2HP-120V |
|---|
| Max. Amperage | 12 Amp |
|---|
