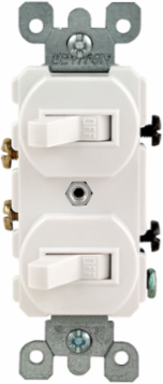

Leviton 5224-2W Duplex Style Combination Switch, 15 Amp, 120/277 Volt, White
- MPN: 5224-2W
- UPC: 078477226483
- PPN: LEV-5224-2W
CAD
$19.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
15 Amp, 120/277 Volt, Duplex Style Single-Pole / Single-Pole AC Combination Switch, Commercial Grade, Grounding, Side Wired, - White
Features
- With Leviton’s extensive assortment of combination devices, you can fill a one-gang space with two switches, a switch and receptacle, even a switch and GFCI. From sensor guide lights to multi-purpose styles and Tamper-Resistant receptacles, we accommodate your every need. These devices come in a range of colors and are backed by a limited two-year warranty. Built to last and designed to save space, these attractively styled devices are at home in any setting.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-1 & WD-6
- UL Standard
- UL 20
CSA C22.2 No. 111File #152105
NOM057
Warranty2-Year Limited
Material Specifications
- Actuator Material
- Thermoplastic
- Color
- White
Body MaterialThermoplastic
Strap MaterialSteel
Mechanical Specifications
- Product ID
- Stamped on Strap
- Terminal ID
- Brass-Hot Black-Hot White-Neutral Green-Gnd
- Torque Range
- 14 – 18 in.-lbs
Terminal Accom.14-12 AWG
TerminationSide
Product Features
- Feature
- Single-Pole / Single-Pole
- Type
- Duplex Style Combination Switch
Product Type2-Switch Combo
Warranty2-Year Limited
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
Operating Temperature-40°C to 65°C
Electrical Specifications
- Amperage
- 15 A
- Grounding
- Grounding
- Pole
- 1
- Voltage
- 120/277 VAC
Dielectric VoltageWithstands 1500V for 1 minute
Overload UL20 Test100 cycles of OL at 4.8 times rated current
Temperature RiseMaximum 30 degrees C rise
AC Horsepower Ratings
- HP Rating
- 1/2HP-120V 2HP-240V-277V
Max. Amperage12 Amp
