Documentation & Downloads

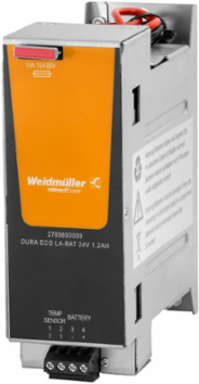

Weidmuller 2789890000 DURA ECO LA-BAT 24V 1.2AH
- MPN: 2789890000
- PPN: WDM-2789890000
CAD
$344.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
DURA ECO LA-BAT 24V 1.2AH
Documentation & Downloads
Specifications
Additional
- Voltage
- 24 V DC
- Output Buffer Times
- 3 min at 6 A, 5 min at 4.5 A, 30 min at 1.4 A
- Nominal Capacity
- 1.3 Ah
- Maximum Charging Current
- 0.2 A
- Weight
- 1750 g
- Max Input Wire Cross-Section
- 4 mm²
- Protection Degree
- IP20
- Humidity Range
- 5–95% RH
- Temperature Probe
- NTC 100 kΩ
- Shock Resistance
- 30 g (wall)
- Compliance
- cULus E258476, RoHS compliant
Operating Temperature Range-15 °C to 50 °C
Overload and Short Circuit Protection10 A fuse
Maximum Output Current15 A
Dimensions124 mm x 149.5 mm x 52 mm
Number of Input Terminals2 (+, −)
Tightening Torque0.5 Nm
Storage Temperature Range-15 °C to 50 °C
Life Expectancy5.65 years
Vibration Resistance0.7 g (DIN rail/wall)
Protection ClassClass III (no ground connection, for SELV)
