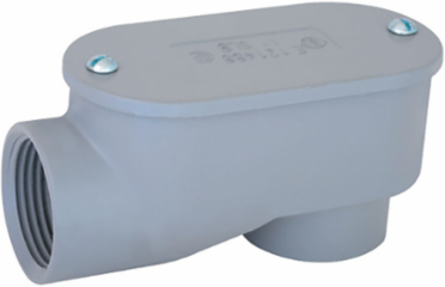

Killark EASLB-5 Aluminum Conduit Entrance ELL 1-1/2 Inch Hub, Lightweight Design, Powder Epoxy Finish
Killark EASLB-5 Aluminum Conduit Entrance ELL 1-1/2 Inch Hub, Lightweight Design, Powder Epoxy Finish
- MPN: EASLB-5
- UPC: 783936166070
- PPN: HBL-EASLB-5
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$209.06/ EA
Description
E Series - Aluminum Conduit Entrance ELL - Hub Size 1-1/2 Inch
Features
- Flat back design for easy mounting close to walls
- Cast of high strength, corrosion and weather resistant aluminum alloy with painted finish
- May be used on aluminum or steel conduit
- Lightweight, makes installation simple
- Ideal for commercial and light industrial applications
- Lightweight aluminum construction eases installation and provides corrosion resistance. Removable cover and gasket allows for easier wire pulling and access to the raceway. Unique E-PAK packaging serves as a shipping and display carton.
Specifications
Specifications
- Country of Origin
- IN
- Each - Width
- 2.625 in
- Color
- Gray
- Hub Size
- 1-1/2"
- Special Features
- Lightweight aluminum construction eases installation and provides corrosion resistance. Removable cover and gasket allows for easier wire pulling and access to the raceway. Unique E-PAK packaging serves as a shipping and display carton.
- Width
- 2.625 in
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Gross Weight with Packaging
- 0.82
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.640 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 2 EA
- Master Pack Description
- Each
Dimensions6.25 in x 2.625 in x 2.594 in
ApplicationFor use with conduit to act as an elbow between service entrance and vertical entrance head conduit runs.
Height2.594 in
Length6.25 in
TypeService Entrance
ARRA CompliantContact Manufacturer
Description - InvoiceE SER 1-1/2" SER ENTRANCE 2PER
Harmonization Code7609000000
Lead Time21 wk
Order Multiple2 EA
Sub Class CodeD30D232
Hub PatternLB
SeriesE Series
BOX SIZE4.500x11.500x5.875 (in)
Carton - Number of Sub Packs2
Carton - SCC-14 Next Lower Level Sub Pack00783936166070
Item Package TypeK-PAK (cover & gasket included)
Certifications
- EU RoHS Indicator
- Contact Manufacturer
