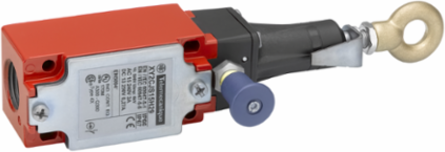

Telemecanique Sensors XY2CJS15 Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e XY2CJ, straight, 1NC+1 NO, Pg13.5
- MPN: XY2CJS15
- PPN: TES-XY2CJS15
- UNSPSC: 39122239
CAD
$211.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This XY2CJ Emergency Stop Rope pull Switch is designed with a right hand side or a left hand side anchor point, allowing operator to trigger the stop of potentially dangerous machines at any point of its working area. It operates with a maximum rope length of 20 meters. It has a Zamak body with a pull button reset, Treated steel cover, color indicator, and 1 normally open and 1 normally closed slow break contacts. Its B10D reliability data is 500 000. This emergency stop rope pull switch is suitable for woodworking machines, shears, conveyor systems, printing machines, textile machines, rolling mills, test laboratories, paint shops, surface treatment works, etc. Its IP66 / IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/IEC 60204-1, EN/IEC 60947-5-1, EN/IEC 60947-5-5, EN/ISO 13850, UL NISD, CSA C22.2 No 14-13 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Telemecanique Emergency stop rope pull switches XY2C
- Housing Colour
- red RAL 3000
- Device Short Name
- XY2C
Product Or Component Typelatching emergency stop rope pull switch
Overvoltage Categoryclass I EN/IEC 61140
Complementary
- Reset
- by pull button
- Terminals Description Iso N°1
- (13-14)NO || (21-22)NC
- Positive Opening
- with EN/IEC 60947-5-1
- Marking
- CE
- Local Signalling
- color indicator
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV EN/IEC 60947-1
- Connections - Terminals
- screw clamp terminal, 1 x 0.5...2 x 1.5 mm²
- [Ui] Rated Insulation Voltage
- 500 V 3)EN/IEC 60947-1 || 300 VUL 508 || 300 VCSA C22.2 No 14
- Contact Operation
- slow-break
- Mechanical Durability
- 100000 cycles
- Compatibility Code
- XY2CJ
- Trigger Cable Anchor Point
- RH or LH side
- Cover Material
- galvanised steel
- Maximum Resistance Across Terminals
- 25 MOhm EN/IEC 60255-7 category 3 || 25 MOhm NF C 93-050 method A
Number Of Cables1
Short-Circuit Protection10 A cartridge fuse gG EN/IEC 60269
[Ithe] Conventional Enclosed Thermal Current10 A
Head MaterialPA (polyamide)
Net Weight0.455 kg
Trigger Cable Maximum Length20 m
Contacts Type And Composition1 NC + 1 NO
[Ie] Rated Operational Current3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
Distance Between Cable Supports5-5 m
Cable Entry Number1 tapped entry Pg 13.5 cable gland
Body Materialzamak
Safety Reliability DataB10d = 500000 value given for a life time of 20 years limited by mechanical or contact wear IEC 60947-5-5
Tightening Torque0.8-1.2 N.m
Safety Levelcan reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1407003EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Product Certifications
- UL category NISD emergency stop devices || CSA || CCC || EAC
- Vibration Resistance
- 10 gn 10-150 Hz)EN/IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
StandardsCSA C22.2 No 14 || machinery directive 2006/42/EC || EN/IEC 60947-5-5 || work equipment directive 2009/104/EC || EN/IEC 60947-5-1 || EN/ISO 13850 || EN/IEC 60204-1 || UL 508
Shock Resistance50 gn 11 ms EN/IEC 60068-2-27
Ip Degree Of ProtectionIP66 IEC 60529 || IP67 IEC 60529
Protective TreatmentTC
