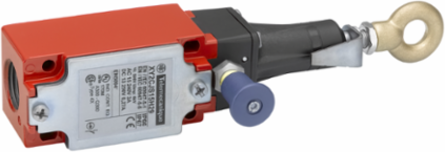

Telemecanique Sensors XY2CJS17 Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e XY2CJ, straight, 2NC Pg13.5
- MPN: XY2CJS17
- PPN: TES-XY2CJS17
- UNSPSC: 39122239
CAD
$228.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This XY2CJ Emergency Stop Rope pull Switch is designed with a right hand side or a left hand side anchor point, allowing operator to trigger the stop of potentially dangerous machines at any point of its working area. It operates with a maximum rope length of 20 meters. It has a Zamak body with a pull button reset, Treated steel cover, color indicator, and 2 normally closed slow break contacts. Its B10D reliability data is 500 000. This emergency stop rope pull switch is suitable for woodworking machines, shears, conveyor systems, printing machines, textile machines, rolling mills, test laboratories, paint shops, surface treatment works, etc. Its IP66 / IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/IEC 60204-1, EN/IEC 60947-5-1, EN/IEC 60947-5-5, EN/ISO 13850, UL NISD, CSA C22.2 No 14-13 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Telemecanique Emergency stop rope pull switches XY2C |
|---|---|
| Housing Colour | red RAL 3000 |
| Device Short Name | XY2C |
| Product Or Component Type | latching emergency stop rope pull switch |
|---|---|
| Overvoltage Category | class I EN/IEC 61140 |
Complementary
| Reset | by pull button |
|---|---|
| Terminals Description Iso N°1 | (11-22)NC || (21-22)NC |
| Positive Opening | with EN/IEC 60947-5-1 |
| Marking | CE |
| Local Signalling | color indicator |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN/IEC 60947-1 |
| Connections - Terminals | screw clamp terminal, 1 x 0.5...2 x 1.5 mm² |
| [Ui] Rated Insulation Voltage | 500 V 3)EN/IEC 60947-1 || 300 VUL 508 || 300 VCSA C22.2 No 14 |
| Contact Operation | slow-break |
| Mechanical Durability | 100000 cycles |
| Compatibility Code | XY2CJ |
| Trigger Cable Anchor Point | RH or LH side |
| Cover Material | galvanised steel |
| Maximum Resistance Across Terminals | 25 MOhm EN/IEC 60255-7 category 3 || 25 MOhm NF C 93-050 method A |
| Number Of Cables | 1 |
|---|---|
| Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60269 |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| Head Material | PA (polyamide) |
| Net Weight | 0.455 kg |
| Trigger Cable Maximum Length | 20 m |
| Contacts Type And Composition | 2 NC |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A |
| Distance Between Cable Supports | 5-5 m |
| Cable Entry Number | 1 tapped entry Pg 13.5 cable gland |
| Body Material | zamak |
| Safety Reliability Data | B10d = 500000 value given for a life time of 20 years limited by mechanical or contact wear IEC 60947-5-5 |
| Tightening Torque | 0.8-1.2 N.m |
| Safety Level | can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508 |
Environment
| Ambient Air Temperature For Operation | -25-70 °C |
|---|---|
| Product Certifications | UL category NISD emergency stop devices || CSA || CCC || EAC |
| Vibration Resistance | 10 gn 10-150 Hz)EN/IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards | EN/IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-5 || EN/ISO 13850 || machinery directive 2006/42/EC || EN/IEC 60204-1 || work equipment directive 2009/104/EC |
|---|---|
| Shock Resistance | 50 gn 11 ms EN/IEC 60068-2-27 |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 IEC 60529 |
| Protective Treatment | TC |
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP1407003EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
