Nvent Hoffman

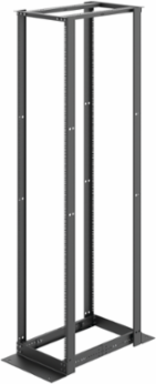

Nvent Hoffman E4DRS19FM51U Open Frame Rack 4-Post 51U Square, 96.00x20.25, Black, Steel

Open Frame Rack 4-Post 51U Square, 96.00x20.25, Black, Steel
  • MPN: E4DRS19FM51U
  • UPC: 783510129545
  • PPN: HOF-E4DRS19FM51U

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1227.69/ EA

Description

Open frame 4-post racks designed to house DataCom/TeleCom equipment with added mounting security. This 4-Post Open Frame Rack 51U Square, E4DRS19FM51U item measures 96.00x20.25 inches with a material of Steel colored Black.

Features

  • Depth adjustable 450 mm to 1050 mm (17.7 inch to 41.3 inch) in 25-mm (.98-inch) increments
  • EIA universal 5/8 - 5/8 - 1/2 inch spaced 12-24 tapped holes or .375-inch square holes fit 19-inch rack equipment
  • Compatible with 19-in. rack accessories
  • Available with nominal frame height of 6, 7 and 8 feet
  • RU markings on both front and back of tapped-hole uprights make it easier to mount equipment
  • Floor mounting holes predrilled at .750-inch diameter
  • 12-24 rack mounting screws (pkg. of 20) included with tapped-hole model
  • For square hole model, order screws and cage nuts separately
  • Can be ganged with both 2- and 4-Post Open Frame racks
  • Includes complete assembly instructions
  • Shipped unassembled for convenient transport to job site
  • Uprights on the tapped-hole model are made of lightweight extruded aluminum (6063-T6 alloy) and include RU markings on both front and back of uprights
  • Uprights on the square-hole model are made from 12 gauge steel
  • Top and bottom angles made of extruded aluminum (6063-T6 alloy)

Specifications

Specifications

BABA
Contact Manufacturer
Width (W)
514
Finish
Powder Coated
Color Code
RAL 9005
Mounting Hole Type
Square
Nominal Frame Height (A)
8
Height (H)2,438
MaterialMild Steel
ColorJet Black
Thickness (T)2.66
Rack Units51
Weight85
