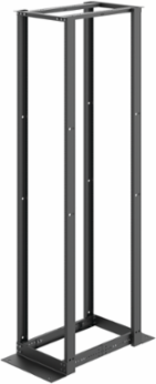

nVent Hoffman E4DR19FM51U Open Frame Rack 4-Post 51U Tapped, 96.00x20.25, Black, Aluminum

MPN: E4DR19FM51U
UPC: 783510100124
PPN: HOF-E4DR19FM51U

$1561.54

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Open frame 4-post racks designed to house DataCom/TeleCom equipment with added mounting security. This 4-Post Open Frame Rack 51U Tapped, E4DR19FM51U item measures 96.00x20.25 inches with a material of Aluminum colored Black.

Features

Depth adjustable 450 mm to 1050 mm (17.7 inch to 41.3 inch) in 25-mm (.98-inch) increments
EIA universal 5/8 - 5/8 - 1/2 inch spaced 12-24 tapped holes or .375-inch square holes fit 19-inch rack equipment
Compatible with 19-in. rack accessories
Available with nominal frame height of 6, 7 and 8 feet
RU markings on both front and back of tapped-hole uprights make it easier to mount equipment
Floor mounting holes predrilled at .750-inch diameter
12-24 rack mounting screws (pkg. of 20) included with tapped-hole model
For square hole model, order screws and cage nuts separately
Can be ganged with both 2- and 4-Post Open Frame racks
Includes complete assembly instructions
Shipped unassembled for convenient transport to job site
Uprights on the tapped-hole model are made of lightweight extruded aluminum (6063-T6 alloy) and include RU markings on both front and back of uprights
Uprights on the square-hole model are made from 12 gauge steel
Top and bottom angles made of extruded aluminum (6063-T6 alloy)
