Nvent Hoffman

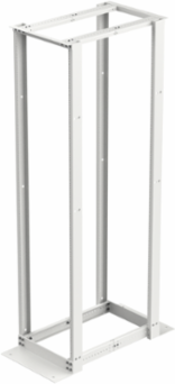

Nvent Hoffman E4WR19FM45U Open Frame Rack 4-Post 45U Square, 84.00x20.25, White, Aluminum

Open Frame Rack 4-Post 45U Square, 84.00x20.25, White, Aluminum
  • MPN: E4WR19FM45U
  • UPC: 783510361112
  • PPN: HOF-E4WR19FM45U

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1432.31/ EA

Description

Open frame 4-post racks designed to house DataCom/TeleCom equipment with added mounting security. This 4-Post Open Frame Rack 45U Square, E4WR19FM45U item measures 84.00x20.25 inches with a material of Aluminum colored White.

Features

  • Depth adjustable 450 mm to 1050 mm (17.7 inch to 41.3 inch) in 25-mm (.98-inch) increments
  • EIA universal 5/8 - 5/8 - 1/2 inch spaced 12-24 tapped holes or .375-inch square holes fit 19-inch rack equipment
  • Compatible with 19-in. rack accessories
  • Available with nominal frame height of 6, 7 and 8 feet
  • RU markings on both front and back of tapped-hole uprights make it easier to mount equipment
  • Floor mounting holes predrilled at .750-inch diameter
  • 12-24 rack mounting screws (pkg. of 20) included with tapped-hole model
  • For square hole model, order screws and cage nuts separately
  • Can be ganged with both 2- and 4-Post Open Frame racks
  • Includes complete assembly instructions
  • Shipped unassembled for convenient transport to job site
  • Uprights on the tapped-hole model are made of lightweight extruded aluminum (6063-T6 alloy) and include RU markings on both front and back of uprights
  • Uprights on the square-hole model are made from 12 gauge steel
  • Top and bottom angles made of extruded aluminum (6063-T6 alloy)

Specifications

Specifications

BABA
Contact Manufacturer
Width (W)
514
Finish
Powder Coated
Color Code
RAL 9003
Mounting Hole Type
Tapped
Nominal Frame Height (A)
84
Height (H)2,131
MaterialAluminum
ColorWhite
Thickness (T)3.5
Rack Units45
Weight67
